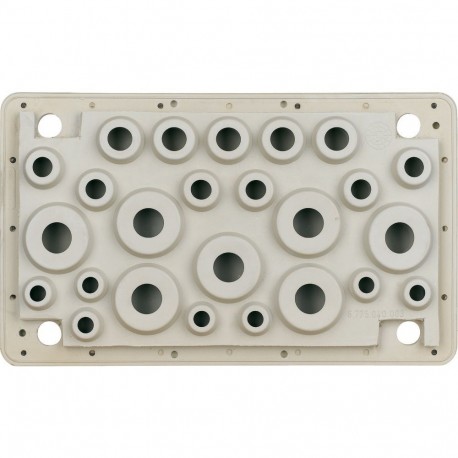

UFK1 150661 Y7-150661 EATON ELECTRIC UFK1 Insulating flange Unigate
UFK1
150661
Y7-150661
EATON - MOELLER
1 Pcs.
UFK1 Insulating flange Unigate
UFK1
Push-through flange UFK, lead-throughs=8xM20, 6xM25, 5xM32, 7xM40, sealing set XBUFK always order 1x separately
Automation > Gland plate for small distribution boards/switchgear cabinets
Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Insulating flange Unigate
Push-through flange UFK, lead-throughs=8xM20, 6xM25, 5xM32, 7xM40, sealing set XBUFK always order 1x separately
Technical data ETIM 7.0
Distribution boards (EG000023) / Gland plate for small distribution boards/switchgear cabinets (EC000211)
Electric engineering, automation, process control engineering / Electrical installation, device / Electrical distribution system (incl. small distribution board) / Gland plate for small distribution boards/switchgear cabinets ([email protected] [ADI315007])
Model
Other
Type
Width
238 mm
Height
23 mm
Depth
30 mm
Material
Plastic
Surface protection
Untreated
Degree of protection (NEMA)
Pre-stamping
Yes
Number of connector holes
Thread type
Suitable for nominal thread metric/PG
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Other |
| Type (EF001139) | Other |
| Width (EF000008) | 140 mm |
| Height (EF000040) | 23 mm |
| Material (EF002169) | Plastic |
| Surface protection (EF000139) | Untreated |
| Pre-stamping (EF001039) | Yes |
| Number of connector holes (EF005554) | 26 |
| Thread type (EF001758) | None |
| Suitable for nominal thread metric/PG (EF012565) | 20 |
