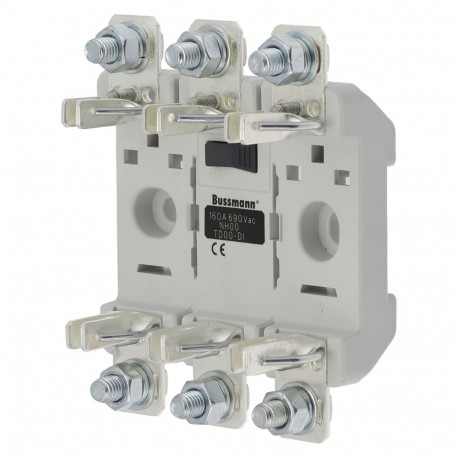

EATON - MOELLER Triple Integral Base NH00 CE Triple Integral Base NH00 CE TD00-DI EATON ELECTRIC Fuse-base, LV, 160 A, AC 690 V, NH00, 3P, IEC, integral .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

Triple Integral Base NH00 CE TD00-DI EATON ELECTRIC Fuse-base, LV, 160 A, AC 690 V, NH00, 3P, IEC, integral ..

Triple Integral Base NH00 CE

TD00DI

TD00-DI

EATON - MOELLER

1 Pcs.

Fuse-base, LV, 160 A, AC 690 V, NH00, 3P, IEC, integral base moulding, DIN rail mount Triple Integral Base NH00 CE Eaton Bussmann series low voltage NH IP protection kit, 160 A, 690 V, Three-pole, DIN rail, NH00

Automation > Low Voltage HRC fuse base
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Formed as a unified three-pole assembly, the Eaton Moeller Triple Integral Base NH00 CE simplifies the installation of knife-blade protection links in distribution hubs. Compact base moldings reduce assembly time while providing reliable mechanical support for demanding industrial power circuits. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: Triple Integral Base NH00 CE
  • Catalogue code: TD00DI
  • Catalogue title: Triple Integral Base NH00 CE TD00-DI EATON ELECTRIC Fuse-base, LV, 160 A, AC 690 V, NH00, 3P, IEC, integral ..

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH IP protection kit
Catalog Number
TD00-DI
Model Code
Triple Integral Base NH00 CE
EAN
5027590415699
Product Length/Depth
120 mm
Product Height
51.6 mm
Product Width
97 mm
Product Weight
428 g
Compliances
CE
RoHS Compliant
Certifications
IEC 60269-1

Electrical rating

Amperage Rating
160 A
Voltage rating
690 V

Compatible fuse

Fuse size
NH00

Product specifications

Number of Poles
Three-pole
Mounting method
DIN rail
