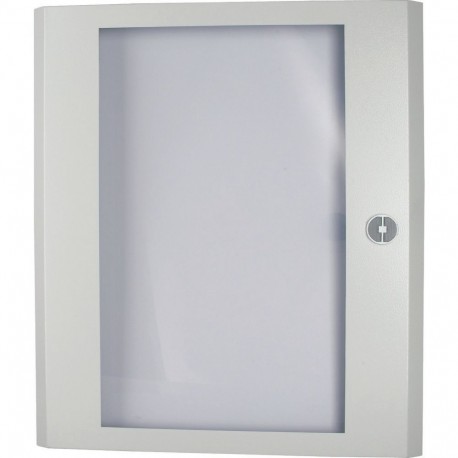

EATON - MOELLER BP-DT-400/12 BP-DT-400/12 286731 Y7-286731 EATON ELECTRIC 286731 BP-DT-400/12 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BP-DT-400/12 286731 Y7-286731 EATON ELECTRIC 286731 BP-DT-400/12

BP-DT-400/12

286731

Y7-286731

EATON - MOELLER

1 Pcs.

286731 BP-DT-400/12 BP-DT-400/12 Transparent door Sheet steel door, BP-DT-...With window, front mounted, for height 1200 mm, width 400 mm, can be quickly installed and disassembled, can be fitted on the right or left, opening angle 167°, 1-point lock with cam lock. Material characteristic: sheet steel, powder-spray painted, RAL 7035, sheet thickness 1 mm, 2 mm plexiglass transparent panel, equipment supplied: 1 door, earth kit

Automation > Door/operating panel (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Transparent door
Sheet steel door, BP-DT-...With window, front mounted, for height 1200 mm, width 400 mm, can be quickly installed and disassembled, can be fitted on the right or left, opening angle 167°, 1-point lock with cam lock. Material characteristic: sheet steel, powder-spray painted, RAL 7035, sheet thickness 1 mm, 2 mm plexiglass transparent panel, equipment supplied: 1 door, earth kit

General specifications
Product name
Eaton xEnergy Basic door
Part no.
BP-DT-400/12
EAN
4015082867317
Product Length/Depth
45 millimetre
Product height
1210 millimetre
Product width
415 millimetre
Product weight
2.3 kilogram
Compliances
RoHS conform
Product Tradename
xEnergy Basic
Product Type
Accessories
Product Sub Type
Door
Delivery program
Type
Additional equipment
Model
Stop door
Color
Gray
Light gray (RAL 7035)
Technical Data - Mechanical
Surface finishing
Powder coating
With powder coating
Mounting method
Surface mounting
Material
Sheet steel/plastic
Steel
Degree of protection
IP30
Other
Cover/door color
Transparent
Cover/door type
Three-point turn-lock
Housing material
Sheet steel/plastic
Suitable for width
400 mm
Additional information
Features
Version as glazed door
Functions
Additional equipment

Technical data ETIM 9.0

Cabinet enclosures (EG000011) / Door/operating panel (enclosure/cabinet) (EC000747)
Electric engineering, automation, process control engineering / Electrical cabinet, housing, rack / Door (electrical cabinet) / Door/operating panel (enclosure) (ecl@ss13-27-18-22-04 [ACN614016])
Model
Stop door
Version as glazed door
Yes
Version as door for disconnecting switch interlocking
No
Width
415 mm
Height
1210 mm
Depth
45 mm
EMC-version
No
Material
Steel
Surface finishing
Powder coating
Colour
Grey
Degree of protection (IP)
IP30
Degree of protection (NEMA)
Other

ETIM for 286731 Cabinets and enclosures (EC000747)
Feature Name Feature Value
Model (EF000010) Stop door
Version as glazed door (EF006966) Yes
Version as door for disconnecting switch interlocking (EF006967) No
Width (EF000008) 415 mm
Height (EF000040) 1210 mm
Depth (EF000049) 45 mm
EMC-version (EF001062) No
Material (EF002169) Steel
Surface finishing (EF006569) Powder coated
Colour (EF000007) Grey
Degree of protection (IP) (EF005474) IP30
Degree of protection (NEMA) (EF011959) Other
