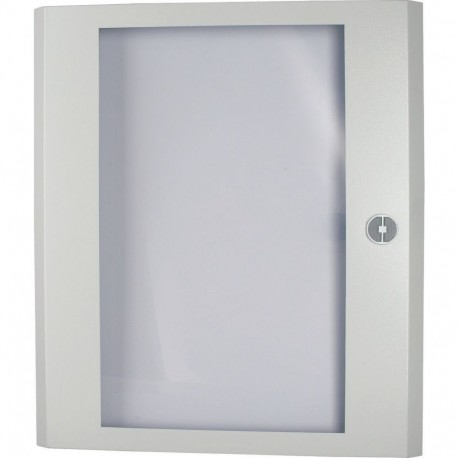

EATON - MOELLER BP-DT-400/7 BP-DT-400/7 286729 Y7-286729 EATON ELECTRIC 286729 BP-DT-400/7 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BP-DT-400/7 286729 Y7-286729 EATON ELECTRIC 286729 BP-DT-400/7

BP-DT-400/7

286729

Y7-286729

EATON - MOELLER

1 Pcs.

286729 BP-DT-400/7 BP-DT-400/7 Eaton xEnergy Basic LV systems Low voltage switchgear. Transparent door, 400/7 Sheet steel door, BP-DT-...With window, front mounted, for height 700 mm, width 400 mm, can be quickly installed and disassembled, can be fitted on the right or left, opening angle 167°, 1-point lock with cam lock. Material characteristic: sheet steel, powder-spray painted, RAL 7035, sheet thickness 1 mm, 2 mm plexiglass transparent panel, equipment supplied: 1 door, earth kit

Automation > Door/operating panel (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller BP-DT-400/7 glazed stop door is designed as a protective enclosure barrier for electrical distribution assemblies and control cabinets, providing visual inspection access while maintaining internal component security. Enclosure doors of this type are routinely installed on industrial switchgear panels to shield sensitive internal components from ambient workplace hazards while allowing operators to monitor equipment status.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Stop door
  • Version as glazed door (EF006966): Yes
  • Width (EF000008): 415 mm
  • Height (EF000040): 710 mm
  • Depth (EF000049): 45 mm
  • EMC-version (EF001062): Yes
  • Material (EF002169): Steel
  • Surface finishing (EF006569): Powder coated
  • Colour (EF000007): Grey
  • Degree of protection (IP) (EF005474): IP30

More info

▲

General specifications

Product Name
Eaton xEnergy Basic door
Catalog Number
286729
Model Code
BP-DT-400/7
EAN
4015082867294
Product Length/Depth
45 mm
Product Height
710 mm
Product Width
415 mm
Product Weight
1.45 kg
Compliances
RoHS conform

Delivery program

Type
Additional equipment
Model
Stop door
Color
Light gray (RAL 7035)
Gray

Technical data - mechanical

Surface finishing
Powder coating
With powder coating
Mounting method
Surface mounting
Material
Sheet steel/plastic
Steel
Cover/door color
Transparent
Cover/door type
Three-point turn-lock
Housing material
Sheet steel/plastic
Suitable for height
760 mm
Suitable for width
400 mm

Additional information

Features
Version as glazed door
EMC-version
Functions
Additional equipment
