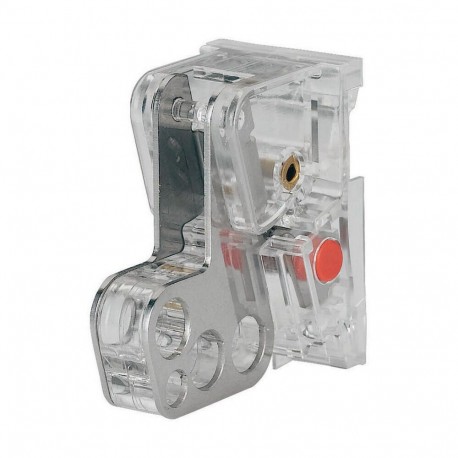

EATON - MOELLER NZM1-XKAV NZM1-XKAV 260199 Y7-260199 EATON ELECTRIC Toggle lever locking device View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NZM1-XKAV 260199 Y7-260199 EATON ELECTRIC Toggle lever locking device

NZM1-XKAV

260199

Y7-260199

EATON - MOELLER

1 Pcs.

Toggle lever locking device NZM1-XKAV Eaton Moeller series NZM - Molded Case Circuit Breaker. Toggle lever locking device, NZM1 Optional accessories for the circuit-breaker series NZM offers a comprehensive portfolio of application options for use world wide. The mounting is always flexible and easy thanks to the modular function groups. Notes: lockable in Off position with up to 3 padlocks (hasp thickness 4 – 8 mm). Cannot be combined with insulating surround. Can be used for NZM1(-4), NZM1(-1), PN1(-4), N(N/O)1(-4)

Automation > Handle for power circuit breaker
Circuit Breakers NZM

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Toggle lever locking device is a mechanical accessory designed to secure circuit breaker toggles in specific positions during maintenance routines to prevent accidental actuation. These lockout attachments are standard safety additions in industrial power distribution panels to protect technicians working on downstream circuits. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • With restart blockage (EF004054): No
  • With key lock (EF026057): No
  • Padlock locking (EF001163): Yes
  • Suitable for emergency stop (EF001433): No
  • With extension shaft (EF001434): No
  • Suitable for power circuit breaker (EF005863): Yes
  • Suitable for switch disconnector (EF007252): Yes

More info

▲

General specifications

Product Name
Eaton Moeller series NZM operating element accessory
Catalog Number
260199
Model Code
NZM1-XKAV
EAN
4015082601997
Product Length/Depth
38 mm
Product Height
50 mm
Product Width
75 mm
Product Weight
0.036 kg
Compliances
IEC
RoHS conform
Certifications
UL489
CSA (File No. 22086)
IEC60947
UL (File No. E140305)
UL (Category Control Number DIHS)
CSA (Class No. 1437-01)
UL listed
CE marking
CSA certified
CSA-C22.2 No. 5-09

Product specifications

Used with
NZM1(-4)
N(S)1(-4)
NZM1(-1)
PN1(-4)
Type
Accessory, otherToggle lever interlock device
Features
Lockable
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
Color
Other
Fitted with:
Padlock
Frame
NZM1
Suitable for
Switch disconnector
Power circuit breaker
Degree of protection / NEMA enclosure type
Other
