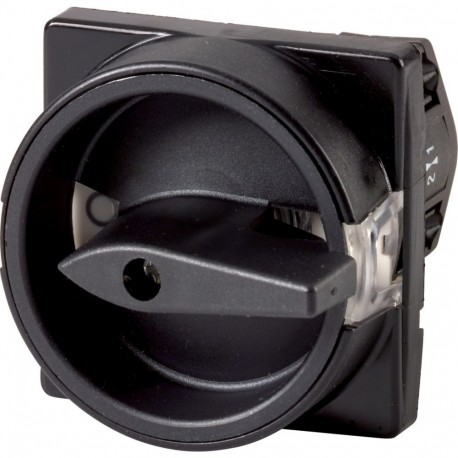

EATON - MOELLER TM-1-8291/E/SVB-SW TM-1-8291/E/SVB-SW 215352 Y7-215352 EATON ELECTRIC Control circuit switches, STOP function, Contacts: 2, 10 .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TM-1-8291/E/SVB-SW 215352 Y7-215352 EATON ELECTRIC Control circuit switches, STOP function, Contacts: 2, 10 ..

TM-1-8291/E/SVB-SW

215352

Y7-215352

EATON - MOELLER

1 Pcs.

Control circuit switches, STOP function, Contacts: 2, 10 A, 90 °, flush mounting, up to 250 V AC per contact TM-1-8291/E/SVB-SW Eaton Moeller® series TM Control circuit switches, TM, 10 A, flush mounting, Contacts: 2, STOP function, With black rotary handle and locking ring, Lockable in the 0 (Off) position Control circuit isolator, Product range: Control switches, Part group reference: TM, Stop Function: STOP function, With black rotary handle and locking ring, Notes: up to 250 V AC per contact, Contacts: 2, Locking facility: Lockable in the 0 (Off) position, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 90 °, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 3 kW, Rated uninterrupted current: Iu = 10 A, 1 contact unit(s), Standards: IEC/EN 60947, VDE 0660, CSA, UL, Control switch as per IEC/EN 60947-5-1, Auxiliary switch as per IEC/EN 60947-5-1

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller TM-1-8291/E/SVB-SW control circuit switch provides reliable manual command input and stop functionality within low-voltage control panels. Control switches allow operators to toggle specific operational modes or initiate safety interrupts in automated equipment.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 10 A
  • Rated permanent current at AC-23, 400 V (EF011777): 6.6 A
  • Rated permanent current at AC-21, 400 V (EF009165): 0 A
  • Rated operation power at AC-3, 400 V (EF001364): 0 kW
  • Rated short-time withstand current lcw (EF007050): 0 kA
  • Rated operation power at AC-23, 400 V (EF007027): 3 kW
  • Switching power at 400 V (EF009166): 0 kW
  • Conditioned rated short-circuit current Iq (EF001444): 0 kA
  • Number of poles (EF001391): 2

More info

▲

General specifications

Product Name
Eaton Moeller® series TM Accessory Control circuit isolator
Catalog Number
215352
Model Code
TM-1-8291/E/SVB-SW
EAN
4015082153526
Product Length/Depth
77 mm
Product Height
48 mm
Product Width
30 mm
Product Weight
0.072 kg
Certifications
IEC/EN 60947-3
UL Category Control No.: NLRV
Certified by UL for use in Canada
CSA-C22.2 No. 94
VDE 0660
IEC/EN 60947-5-1
UL
CE
CSA-C22.2 No. 14-05
UL File No.: E36332
CSA
UL 508
UL report applies to both US and Canada
IEC/EN 60947
Catalog Notes
up to 250 V AC per contact
