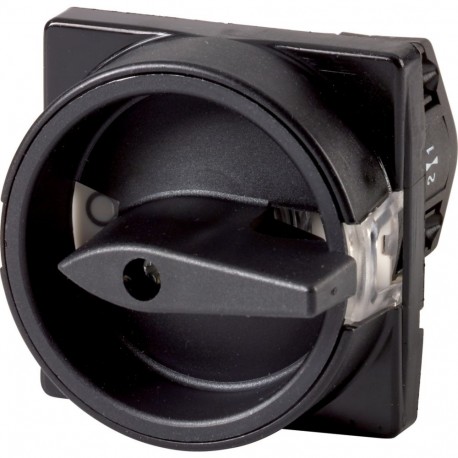

TM-1-8290/E/SVB-SW 215351 Y7-215351 EATON ELECTRIC Control circuit switches, STOP function, Contacts: 1, 10 ..
TM-1-8290/E/SVB-SW
215351
Y7-215351
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A control circuit switch such as the Eaton Moeller TM-1-8290/E/SVB-SW 215351 Y7-215351 is designed to manage auxiliary electrical signals and operational commands within industrial automation panels. Technicians integrate these compact switches into control desks to govern machine states and execute specific relay logic routines. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): No
- Version as maintenance-/service switch (EF006986): No
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): No
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 10 A
- Rated permanent current at AC-23, 400 V (EF011777): 6.6 A
- Rated permanent current at AC-21, 400 V (EF009165): 0 A
- Rated operation power at AC-3, 400 V (EF001364): 0 kW
- Rated short-time withstand current lcw (EF007050): 0 kA
- Rated operation power at AC-23, 400 V (EF007027): 3 kW
- Switching power at 400 V (EF009166): 0 kW
- Conditioned rated short-circuit current Iq (EF001444): 0 kA
- Number of poles (EF001391): 1
More info
▲General specifications
IEC/EN 60947-3
UL Category Control No.: NLRV
UL File No.: E36332
VDE 0660
CE
CSA
IEC/EN 60947
IEC/EN 60947-5-1
UL
UL report applies to both US and Canada
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94
UL 508
