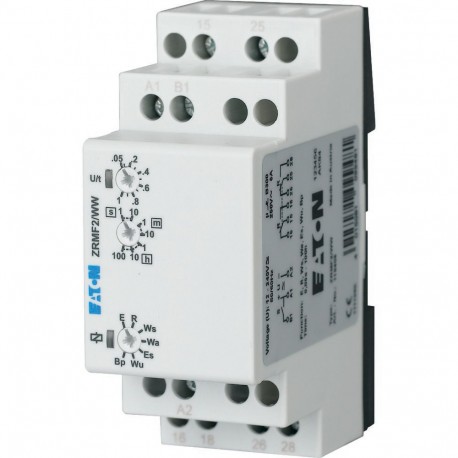

EATON - MOELLER ZRMF2/WW ZRMF2/WW 110408 Y7-110408 EATON ELECTRIC Timing relay multi-function, 7 functions, 1 changeover contacts View larger
Images are for illustrative purposes only. Please refer to data sheet for details

ZRMF2/WW 110408 Y7-110408 EATON ELECTRIC Timing relay multi-function, 7 functions, 1 changeover contacts

ZRMF2/WW

110408

Y7-110408

EATON - MOELLER

1 Pcs.

Timing relay multi-function, 7 functions, 1 changeover contacts ZRMF2/WW Eaton Distribution parts. Timing relay multi-function, 7 functions, 1 changeover contacts, WW Timing relay multi-function, 7 functions, 7 time end ranges, resilient control contact, supply voltage 24-240VAC/DC, 1 changeover contacts

Automation > Timer relay
Modular Switchgear – Others and Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller ZRMF2/WW is a multi-function timing relay built to provide flexible control options across various automation and panel-building applications. Multi-function relays consolidate several timing modes into a single device, allowing engineers to configure delay, interval, or pulsing routines as system requirements dictate.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of electric connection (EF003961): Screw connection
  • Complete with socket (EF003359): No
  • Suitable for DIN rail (top hat rail) mounting (EF007250): Yes
  • Suitable for front mounting (EF020288): Yes
  • Pluggable on auxiliary contact block (EF006952): No
  • Function delay-on energization (EF003374): Yes
  • Function delay on de-energization (EF003401): Yes
  • Function floating contact on energization (EF003378): Yes
  • Function floating contact on de-energization (EF003402): Yes
  • Function star-delta (EF003380): No
  • Function pulse shaping (EF003403): Yes
  • Clock function, starting with pause, variable (EF003365): No
  • Clock function, starting with pulse, variable (EF003366): No
  • Time range (EF003384): 0.05 s
  • Remote operation possible (EF003361): No
  • Suitable as remote control (EF003362): No

More info

▲

General specifications

Product Name
Eaton Distribution parts
Catalog Number
110408
Model Code
ZRMF2/WW
EAN
4015081099481
Product Length/Depth
65 mm
Product Height
87 mm
Product Width
35 mm
Product Weight
0.1 kg
Compliances
RoHS conform

Product specifications

Electric connection type
Screw connection
Ambient operating temperature - max
55 °C
Ambient operating temperature - min
-25 °C
Nominal current
8 A
Degree of protection
IP20
Functions
Pulse shaping
Delay on de-energization
Delay-on energization
Floating contact on energization
Floating contact on de-energization
Voltage type
AC/DC
Suitable for
Front mounting
DIN rail (top hat rail) mounting
Number of outputs (delayed, change-over contact)
2
Number of outputs (delayed, normally closed contact)
0
Number of outputs (delayed, normally open contact)
0
Number of outputs (undelayed, change-over contact)
0
Number of outputs (undelayed, normally closed contact)
0
Number of outputs (undelayed, normally open contact)
0
Rated control supply voltage (Us) at AC, 50 Hz - max
240 V
Rated control supply voltage (Us) at AC, 50 Hz - min
24 V
Rated control supply voltage (Us) at AC, 60 Hz - max
240 V
Rated control supply voltage (Us) at AC, 60 Hz - min
24 V
Rated control supply voltage (Us) at DC - max
240 V
Rated control supply voltage (Us) at DC - min
24 V
Static heat dissipation, non-current-dependent
2 W
Time range - max
360000 s
Time range - min
0.05 s
Starting current - max
8 A
Voltage type of operating voltage
AC/DC
Operating voltage at AC, 50 Hz - min
24 V
Operating voltage at AC, 50 Hz - max
240 V
Operating voltage at AC, 60 Hz - min
24 V
Operating voltage at AC, 60 Hz - max
240 V
Operating voltage at DC - min
24 V
Operating voltage at DC - max
240 V
