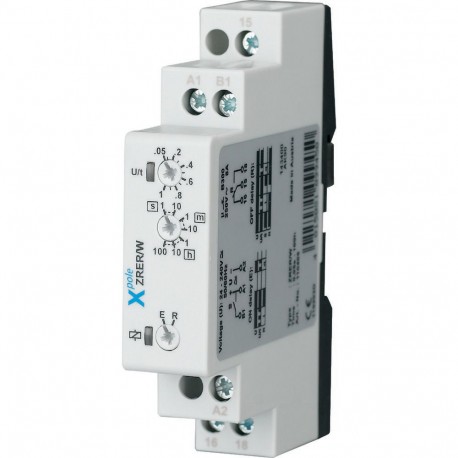

EATON - MOELLER ZRER/W ZRER/W 110405 Y7-110405 EATON ELECTRIC Timing relay multi-function, 2 functions, 1 changeover contacts View larger
Images are for illustrative purposes only. Please refer to data sheet for details

ZRER/W 110405 Y7-110405 EATON ELECTRIC Timing relay multi-function, 2 functions, 1 changeover contacts

ZRER/W

110405

Y7-110405

EATON - MOELLER

2 Pcs.

Timing relay multi-function, 2 functions, 1 changeover contacts ZRER/W Eaton Distribution parts. Timing relay multi-function, 2 functions, 1 changeover contacts Timing relay multi-function, 2 functions, 7 time end ranges, resilient control contact, supply voltage 24-240VAC/DC, 1 changeover contacts

Automation > Timer relay
Modular Switchgear – Others and Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Distribution parts
Catalog Number
110405
Model Code
ZRER/W
EAN
4015081099450
Product Length/Depth
65 mm
Product Height
87 mm
Product Width
17.5 mm
Product Weight
0.067 kg
Compliances
RoHS conform

Product specifications

Electric connection type
Screw connection
Ambient operating temperature - max
55 °C
Ambient operating temperature - min
-25 °C
Nominal current
8 A
Degree of protection
IP20
Functions
Delay-on energization
Delay on de-energization
Voltage type
AC/DC
Suitable for
DIN rail (top hat rail) mounting
Front mounting
Number of outputs (delayed, change-over contact)
1
Number of outputs (delayed, normally closed contact)
0
Number of outputs (delayed, normally open contact)
0
Number of outputs (undelayed, change-over contact)
0
Number of outputs (undelayed, normally closed contact)
0
Number of outputs (undelayed, normally open contact)
0
Rated control supply voltage (Us) at AC, 50 Hz - max
240 V
Rated control supply voltage (Us) at AC, 50 Hz - min
24 V
Rated control supply voltage (Us) at AC, 60 Hz - max
240 V
Rated control supply voltage (Us) at AC, 60 Hz - min
24 V
Rated control supply voltage (Us) at DC - max
240 V
Rated control supply voltage (Us) at DC - min
24 V
Static heat dissipation, non-current-dependent
1.5 W
Time range - max
360000 s
Time range - min
0.05 s
Starting current - max
8 A
Voltage type of operating voltage
AC/DC
Operating voltage at AC, 50 Hz - min
24 V
Operating voltage at AC, 50 Hz - max
240 V
Operating voltage at AC, 60 Hz - min
24 V
Operating voltage at AC, 60 Hz - max
240 V
Operating voltage at DC - min
24 V
Operating voltage at DC - max
240 V

ETIM for 110405 Relays (EC001439)
Feature Name Feature Value
Type of electric connection (EF003961) Screw connection
Complete with socket (EF003359) No
Suitable for DIN rail (top hat rail) mounting (EF007250) Yes
Suitable for front mounting (EF020288) Yes
Pluggable on auxiliary contact block (EF006952) No
Function delay-on energization (EF003374) Yes
Function delay on de-energization (EF003401) Yes
Function floating contact on energization (EF003378) No
Function floating contact on de-energization (EF003402) No
Function star-delta (EF003380) No
Function pulse shaping (EF003403) No
Function flashing, starting with pause, fixed time (EF003363) No
Function flashing, starting with pulse, fixed time (EF003364) No
Clock function, starting with pause, variable (EF003365) No
Clock function, starting with pulse, variable (EF003366) No
Time range (EF003384) 0.05 s
Remote operation possible (EF003361) No
Suitable as remote control (EF003362) No
Rated control supply voltage AC 50 Hz (EF003978) 24 V
Rated control supply voltage AC 60 Hz (EF003979) 24 V
Rated control supply voltage DC (EF003980) 24 V
Voltage type for actuating (EF008242) AC/DC
Number of outputs, undelayed, normally closed contact (EF006835) 0
Number of outputs, undelayed, normally open contact (EF006836) 0
Number of outputs, undelayed, change-over contact (EF006837) 0
Number of outputs, delayed, normally closed contact (EF006838) 0
Number of outputs, delayed, normally open contact (EF006839) 0
Number of outputs, delayed, change-over contact (EF006840) 1
Outputs, reversible delayed/undelayed (EF006988) No
With semiconductor output (EF003373) No
Operating voltage AC 50 Hz (EF008206) 24 V
Operating voltage AC 60 Hz (EF008207) 24 V
Operating voltage DC (EF008208) 24 V
Voltage type (operating voltage) (EF005294) AC/DC
Nominal current (EF000001) 8 A
Max. starting current (EF001732) 8 A
Degree of protection (IP) (EF005474) IP20
Width (EF000008) 17.5 mm
Height (EF000040) 87 mm
Depth (EF000049) 65 mm
