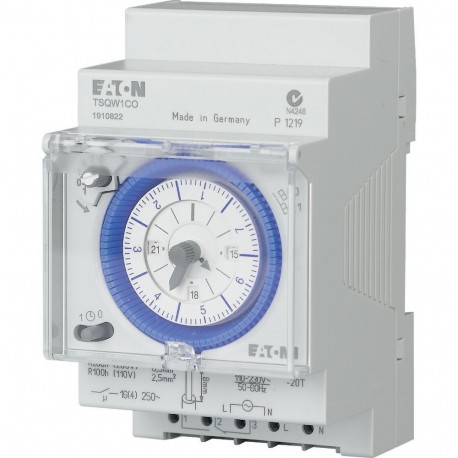

Series connection time switch 7 days, series connection time switch, autonomy, 3 TLE TSQW1CO Eaton Distribution parts. Series connection time switch 7 days, series connection time switch, autonomy, 3 TLE Modularly installed time switch approx. 200 autonomy in hours, width 52.5 mm 7 days program. shortest changeover time 2 hr., clock hands for switching the time display and 12h / 24h, clockwise and counterclockwise clock-time correction possible, switching preselection, switching by hand with 3 positions: duration ON / AUTO / OFF permanently, switch-status display, duoFix spring plug-in terminal for 2 conductor each, 1 changeover contacts, 16 A/250 V~, 230V /45-50 Hz sealable transparent cover.

Automation > Analogous time switch for distribution board
Modular Switchgear – Others and Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered for panel integration, the Eaton Moeller TSQW1CO series connection time switch provides precise weekly programming for industrial systems. Weekly time switches enable facility managers to automate complex operational schedules across machinery, lighting arrays, and HVAC networks.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Mounting method (EF000003): DIN rail
  • Number of channels (EF000259): 1
  • Supply voltage (EF004127): 110 V
  • Voltage type (supply voltage) (EF002991): AC
  • Frequency supply voltage (EF004687): 45 Hz
  • Autonomy in hours (EF004721): 200
  • Autonomy in years (EF004720): 0
  • Accuracy per day (EF006325): 1 s
  • 60 min program (EF002964): No
  • 24 h program (EF002965): No
  • Weekly program (EF001184): Yes
  • Annual program (EF001185): No
  • Mains synchronous (EF002973): No
  • Quartz controlled (EF002974): Yes
  • Contact type (EF001587): EV000201
  • Program shift divide 1 (EF005181): 120 min

More info

▲

General specifications

Product Name
Eaton Distribution parts
Catalog Number
167392
Model Code
TSQW1CO
EAN
4015081638901
Product Length/Depth
65.6 mm
Product Height
90 mm
Product Width
54 mm
Product Weight
0.121 kg
Compliances
RoHS conform

Product specifications

Mounting method
DIN rail
Equipment heat dissipation, current-dependent
0 W
Number of channels
1
Accuracy per day
1 s
Ambient operating temperature - max
55 °C
Ambient operating temperature - min
-20 °C
Autonomy in hours
200 hour
Autonomy in years
0 year
Frequency supply voltage - max
60 Hz
Frequency supply voltage - min
45 Hz
Heat dissipation capacity
0 W
Heat dissipation per pole, current-dependent
0 W
Nominal switching current at 250 V AC
16 A
Contact type
Change-over contact
Degree of protection
IP20
Functions
Quartz controlled
Manual operation
Potential free switch contact
Weekly program
Switching preselection
Voltage type
AC
Shortest switching time at channel 1
120 min
Shortest switching time at channel 2
0 min
Program shift divide 1
120 min
Program shift divide 2
0 min
Rated operational current for specified heat dissipation (In)
0 A
Switching power LED - max
600 W
Static heat dissipation, non-current-dependent
0.5 W
Supply voltage - max
230 V
Supply voltage - min
110 V
Width in number of modular spacings
3

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
