TSDW2CO

167380

EATON - MOELLER

1 Pcs.

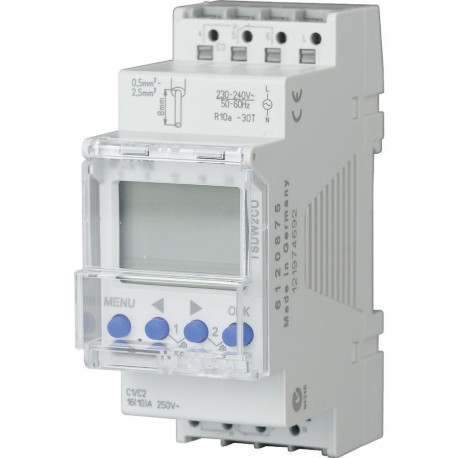

Series connection digital time switch 2 channels, 7 days, text line, push terminal, 2 TLE Series connection digital time switch with time clock set ex-factory, text-oriented operator prompting in display, interface for memory card, width 35 mm, spring push terminals, 10 years autonomy and programmed DST setting. Day and week program shortest changeover time 1 min., continuous switch ON/OFF/AUTO, switching preselection, 56 memory locations, PIN coding, 2 channels 2 changeover contacts 16A 250V~.

Automation > Digital time switch for distribution board
Modular Switchgear – Others and Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for multi-circuit automation, the Eaton Moeller TSDW2CO series connection digital time switch provides dual-channel 7-day scheduling control. Such units are frequently installed in commercial switchboards to manage complex facility timing requirements. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Mounting method (EF000003): DIN rail
  • Number of channels (EF000259): 2
  • Supply voltage (EF004127): 230 V
  • Voltage type (supply voltage) (EF002991): AC
  • Frequency supply voltage (EF004687): 50 Hz
  • Autonomy in hours (EF004721): 0
  • Autonomy in years (EF004720): 10
  • Accuracy per day (EF006325): 0.5 s
  • Text guidance in display (EF005341): Yes
  • External programming (EF003846): Yes
  • With memory card (EF009768): No
  • 60 min program (EF002964): No
  • 24 h program (EF002965): Yes
  • Weekly program (EF001184): Yes
  • Annual program (EF001185): No
  • Holiday program (EF002968): Yes

More info

▲
Series connection digital time switch 2 channels, 7 days, text line, push terminal, 2 TLE
Eaton Catalog No.
TSDW2CO
EL-Nummer (Norway)
0001456982
Series connection digital time switch with time clock set ex-factory, text-oriented operator prompting in display, interface for memory card, width 35 mm, spring push terminals, 10 years autonomy and programmed DST setting. Day and week program shortest changeover time 1 min., continuous switch ON/OFF/AUTO, switching preselection, 56 memory locations, PIN coding, 2 channels 2 changeover contacts 16A 250V~.
[

Design verification as per IEC/EN 61439

Rated operational current for specified heat dissipation [In]
0 A
Heat dissipation per pole, current-dependent [Pvid]
0 W
Equipment heat dissipation, current-dependent [Pvid]
0 W
Static heat dissipation, non-current-dependent [Pvs]
1.1 W
Heat dissipation capacity [Pdiss]
0 W
Operating ambient temperature min.
-30 °C
Operating ambient temperature max.
+55 °C
0
,

Technical data ETIM 7.0

Devices for distribution board-/surface mounting (EG000062) / Digital time switch for distribution board (EC002305)
Electric engineering, automation, process control engineering / Measurement technology, process measurement technology / Measuring appliance, time / Digital time switch ([email protected] [ACN653011])
Mounting method
DIN rail
Number of channels
2
Supply voltage
230 - 240 V
Voltage type of supply voltage
AC
Frequency supply voltage
50 - 60 Hz
Autonomy in hours
0
Autonomy in years
10
Accuracy per day
0.5 s
Text guidance in display
Yes
External programming
Yes
Memory card included
No
60 min. program
No
24 h program
Yes
Weekly program
Yes
Annual program
No
Holiday program
Yes
Impulse program
No
Cycle program
No
Astro program
No
Random program
No
Hour meter
Yes
Mains synchronous
No
Quartz controlled
Yes
Radio-controlled
No
Radio-controlled (DCF77)
No
GPS (global positioning system)
No
Contact type
Change-over contact
Shortest switching time channel 1
1 min
Shortest switching time channel 2
1 min
Number of memory locations
56
Automatic switching summer-/winter time
Yes
Manual operation
Yes
External pushbutton input
No
Switching preselection
Yes
Nominal switching current at 250 V AC
16 A
Potential free switch contact
Yes
Degree of protection (IP)
IP20
Width in number of modular spacings
2
Width
35.8 mm
Height
90.1 mm
Depth
69.2 mm
]
