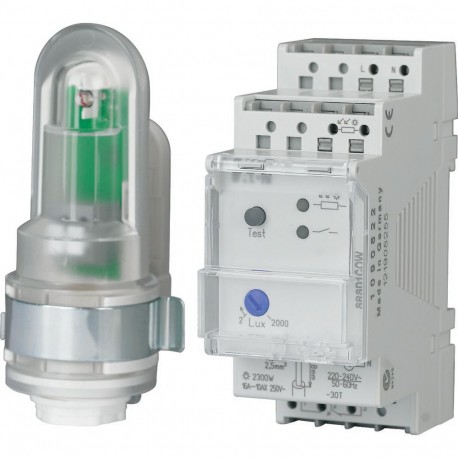

SRSD1COW 167378 EATON ELECTRIC Distribution board-light intensity switch, 2 TLE, 2-2000 Lux, w. surface moun..
SRSD1COW
167378
EATON - MOELLER
1 Pcs.
Distribution board-light intensity switch, 2 TLE, 2-2000 Lux, w. surface mounting light sensor
Distribution board-light intensity switch, width 35 mm, separate surface mounting - light sensor (IP 55), brightness range: 2-2000 lux on-/off-delay 60 sec /60 sec., undelayed LED display, duoFix- plug-in terminals, test button, 1 changeover contacts 16A/250V~ with LED sealable transparent cover.
Automation > Twilight switch for distribution board
Modular Switchgear – Others and Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Distribution board-light intensity switch, 2 TLE, 2-2000 Lux, w. surface mounting light sensor
Eaton Catalog No.
SRSD1COW
EL-Nummer (Norway)
0001456980
Distribution board-light intensity switch, width 35 mm, separate surface mounting - light sensor (IP 55), brightness range: 2-2000 lux on-/off-delay 60 sec /60 sec., undelayed LED display, duoFix- plug-in terminals, test button, 1 changeover contacts 16A/250V~ with LED sealable transparent cover.
Design verification as per IEC/EN 61439
Rated operational current for specified heat dissipation [In]
0 A
Heat dissipation per pole, current-dependent [Pvid]
0 W
Equipment heat dissipation, current-dependent [Pvid]
0 W
Static heat dissipation, non-current-dependent [Pvs]
1.7 W
Heat dissipation capacity [Pdiss]
0 W
Operating ambient temperature min.
-30 °C
Operating ambient temperature max.
+55 °C
0
Technical data ETIM 7.0
Devices for distribution board-/surface mounting (EG000062) / Twilight switch for distribution board (EC001645)
Electric engineering, automation, process control engineering / Electrical installation, device / Modular serial built-in device for electrical circuit distributors / Twilight switch for distribution board ([email protected] [ACN363011])
Rated voltage
230 V
Rated frequency
50 - 60 Hz
Max. incandescent lamp load
2300 W
Max. load fluorescent lamp
2300 VA
Max. load fluorescent lamp (Duo circuit)
2300 VA
Max. load fluorescent lamp (parallel compensated)
400 VA
Max. switching current (cos phi = 0.6)
0 A
Rated switch current
16 A
Adjustment range brightness value
2 - 2000 lx
With programmable overnight shutoff
No
Push button input
No
Rated voltage light sensor
0 V
Max. conductor length light sensor
100 m
Protection class light sensor
II
Mounting method light sensor
Wall surface mounted
Mounting method
DIN rail
Width in number of modular spacings
2
Built-in depth
69.2 mm
Degree of protection (IP)
IP20
Degree of protection (IP) light sensor
IP55
| Feature Name | Feature Value |
|---|---|
| Rated voltage (EF000228) | 230 V |
| Rated frequency (EF001663) | 50 Hz |
| Max. incandescent lamp load (EF004952) | 2300 W |
| Max. load fluorescent lamp (EF004971) | 2300 VA |
| Max. load fluorescent lamp (Duo circuit) (EF004972) | 2300 VA |
| Max. load fluorescent lamp (parallel compensated) (EF004973) | 400 VA |
| Max. switching current (cos phi = 0.6) (EF004920) | 0 A |
| Rated switch current (EF006706) | 16 A |
| Adjustment range brightness value (EF006708) | 2 lx |
| With programmable overnight shutoff (EF005062) | No |
| Push button input (EF005335) | No |
| Rated voltage light sensor (EF004515) | 0 V |
| Max. conductor length light sensor (EF004970) | 100 m |
| Protection class light sensor (EF006709) | II |
| Mounting method light sensor (EF006710) | Wall surface mounted |
| Mounting method (EF000003) | DIN rail |
| Width in number of modular spacings (EF002950) | 2 |
| Built-in depth (EF000218) | 69.2 mm |
| Degree of protection (IP) (EF005474) | IP20 |
| Degree of protection (IP) light sensor (EF005265) | IP55 |
