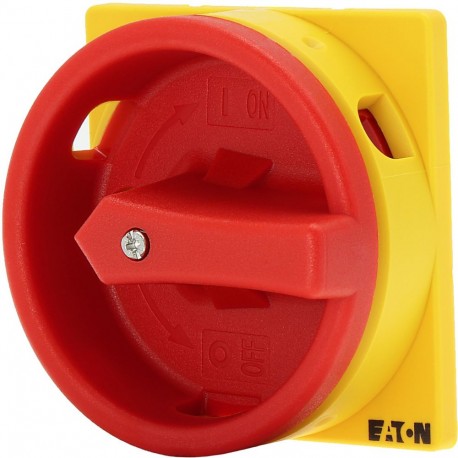

EATON - MOELLER SVB-T0 SVB-T0 057892 Y7-57892 EATON ELECTRIC Thumb-grip, red, lockable with padlock, for T0 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SVB-T0 057892 Y7-57892 EATON ELECTRIC Thumb-grip, red, lockable with padlock, for T0

SVB-T0

057892

Y7-57892

EATON - MOELLER

1 Pcs.

Thumb-grip, red, lockable with padlock, for T0 Padlock lockable lever Red for T0 Eaton Moeller® series SVB Thumb-grip, red, lockable with padlock, for T0, T3, P1 Handle, Basic function: Assembly kits, Function: main switch assembly kits, only for main switch, With padlocking feature, for interlocking the 0 position, Lockable with a maximum of 3 padlocks, For use with: T0-.../E, .../Z, .../I1, T3-.../E, .../Z, .../I2, P1-…/E, …/Z, …/I2, For use with: T0 up to max. 4 contact units, T3 up to max. 6 contact units, red/yellow, Type With red rotary handle and yellow locking ring, Emergency switching off/emergency stop: as emergency switching off/emergency stop function, Switching angle: 90 °

Automation > Handle for power circuit breaker
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series SVB Accessory Handle
Catalog Number
057892
Model Code
SVB-T0
EAN
4015080578925
Product Length/Depth
100 mm
Product Height
65 mm
Product Width
65 mm
Product Weight
0.55 kg
Certifications
UL/CSA certification not required

Features & Functions

Color
Red
Features
Lockable
Fitted with:
Padlocking feature
Functions
Emergency switching off function
Emergency stop function
Locking facility
Lockable with a maximum of 3 padlocks
Locking mechanism
Lockable in the 0 (Off) position (interlock)

General

Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
50 °C
Degree of protection
NEMA Other
Suitable for
Only for main switch
Switch disconnector
Switching angle
90 °
Type
  • Assembly kit
  • Main switch assembly kit
  • With red rotary handle and yellow locking ring

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0 W
Rated operational current for specified heat dissipation (In)
0 A
Static heat dissipation, non-current-dependent Pvs
0 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 057892 Low-voltage industrial controls and switchgear (EC000229)
Feature Name Feature Value
With restart blockage (EF004054) No
With key lock (EF026057) No
Padlock locking (EF001163) No
Colour (EF000007) Red
Suitable for emergency stop (EF001433) No
With extension shaft (EF001434) No
Suitable for power circuit breaker (EF005863) No
Suitable for switch disconnector (EF007252) Yes
Degree of protection (NEMA) (EF011959) Other
