View larger
Images are for illustrative purposes only. Please refer to data sheet for details

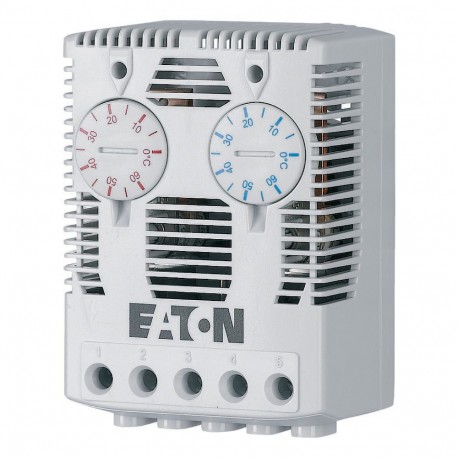

TH-TWIN 167266 Y7-167266 EATON ELECTRIC 167266 TH-TWIN
TH-TWIN
167266
Y7-167266
EATON - MOELLER
1 Pcs.
167266 TH-TWIN
TH-TWIN
Eaton xEffect E-FAN Enclosures Switch- & Controlgear Enclosure. Thermostat, TWIN
Dual thermostat with a temperature delta of less than 7 K, two different adjustable temperatures; with N/C / N/O with snap-action; rated operating voltage 240V; degree of protection IP20; screw terminals for 0.5-2.5mm² cable cross-section; suitable for operating fans and heating systems; snap fitting for 35mm rigid busbar as per EN 60715; color RAL7035
Automation > Thermostat/hygrostat (enclosure/cabinet)
Connection Accessories for Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEffect E-FAN Enclosures Switch- & Controlgear Enclosure
Catalog Number
167266
Model Code
TH-TWIN
EAN
4015081637669
Product Length/Depth
38 mm
Product Height
81 mm
Product Width
59 mm
Product Weight
0.2 kg
Compliances
RoHS conform
Delivery programme
Model
Thermostat
Amperage Rating
10 A
Technical data - electrical
Rated operational voltage (Ue) - max
240 V
Technical data - mechanical
Switch function type
Change-over contact (NO/NC)
Mounting Method
Other
Adjustable setting value for relative air humidity - min
0 %
Adjustable setting value for relative air humidity - max
0 %
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Thermostat |
| Rated voltage AC 50 Hz (EF007065) | 120 V |
| Rated voltage AC 60 Hz (EF007066) | 0 V |
| Rated voltage DC (EF007067) | 0 V |
| Rated current In (EF008250) | 10 A |
| Adjustable setting value for relative air humidity (EF008210) | 0 % |
| Temperature setting range (EF021341) | 0 °C |
| Mounting method (EF000003) | Other |
| Type of switch function (EF003963) | Change-over contact (NO/NC) |
| With digital indication (EF001082) | No |
