> EATON - MOELLER > Connection Accessories for Enclosures > 167310

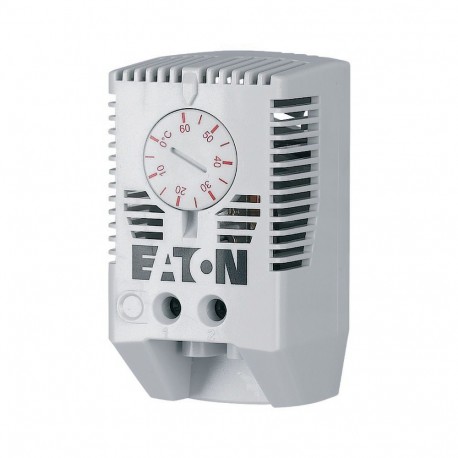

EATON - MOELLER TH-TW-1K TH-TW-1K 167310 Y7-167310 EATON ELECTRIC 167310 TH-TW-1K View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TH-TW-1K 167310 Y7-167310 EATON ELECTRIC 167310 TH-TW-1K

TH-TW-1K

167310

Y7-167310

EATON - MOELLER

1 Pcs.

167310 TH-TW-1K TH-TW-1K Eaton xEffect E-FAN Enclosures Switch- & Controlgear Enclosure. Thermostat, TW-1K Thermostat with temperature delta of 1 K; adjustable temperature; with changeover contact with snap-action; temperature range 0-60C°; min. switching voltage 120- 240V AC 10A max. 30W; degree of protection IP20; bimetallic strip sensor type; screw terminals for 0.5-2.5mm² cable cross-section; temperature feedback; suitable for operating fans and heating systems; snap fitting for 35mm rigid busbar as per EN 60715; color RAL7035

Automation > Thermostat/hygrostat (enclosure/cabinet)
Connection Accessories for Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller 167310 TH-TW-1K acts as a bimetallic temperature controller engineered to regulate heating and cooling equipment within electrical control enclosures. Panel thermostats help prevent component failure caused by extreme thermal shifts and internal condensation. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Thermostat
  • Rated voltage AC 50 Hz (EF007065): 120 V
  • Rated voltage AC 60 Hz (EF007066): 0 V
  • Rated voltage DC (EF007067): 0 V
  • Rated current In (EF008250): 10 A
  • Temperature setting range (EF021341): 0 °C
  • Type of switch function (EF003963): Change-over contact (NO/NC)
  • With digital indication (EF001082): No

More info

▲

General specifications

Product Name
Eaton xEffect E-FAN Enclosures Switch- & Controlgear Enclosure
Catalog Number
167310
Model Code
TH-TW-1K
EAN
4015081638109
Product Length/Depth
46 mm
Product Height
64 mm
Product Width
37 mm
Product Weight
0.2 kg
Compliances
RoHS conform

Delivery programme

Model
Thermostat
Amperage Rating
10 A

Technical data - electrical

Rated operational voltage (Ue) - max
240 V

Technical data - mechanical

Switch function type
Change-over contact (NO/NC)
Mounting Method
Other
Adjustable setting value for relative air humidity - min
0 %
Adjustable setting value for relative air humidity - max
0 %

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
