View larger
Images are for illustrative purposes only. Please refer to data sheet for details

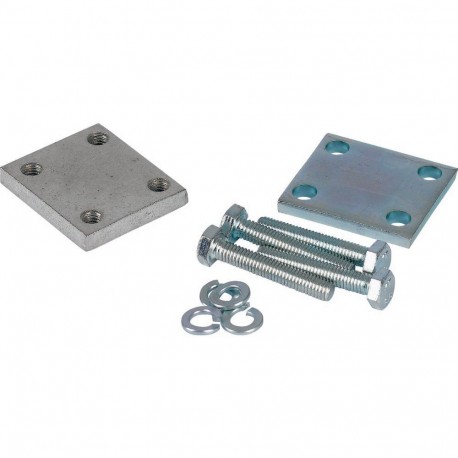

K16X16/35 040833 Y7-40833 EATON ELECTRIC 040833 K16X16/35
K16X16/35
040833
Y7-40833
EATON - MOELLER
1 Pcs.
040833 K16X16/35
bar distributor for CU20x5(x10, x15)
Eaton xEnergy Safety Ci LV systems LV switchgear. Connection terminal, CI distribution board
Connection terminal, CI distribution board
Automation > Busbar terminal
Connection Accessories for Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEnergy Safety Ci busbar enclosure accessory
Catalog Number
040833
Model Code
K16X16/35
EAN
4015080408338
Product Length/Depth
45 mm
Product Height
50 mm
Product Width
50 mm
Product Weight
0.151 kg
Compliances
RoHS conform
Product specifications
Width clamp
25 mm
Busbar thickness - max
35 mm
Busbar thickness - min
5 mm
Busbar width - max
16 mm
Busbar width - min
16 mm
Conductor cross section - max
0 mm²
Rated operational current (Ie) - max
100 A
Suitable for
Strip conductor connection
Flat rail
Round conductor connection
Flat rail
Round conductor connection
Rated operational current
100 A
| Feature Name | Feature Value |
|---|---|
| Busbar thickness (EF007220) | 5 mm |
| Busbar width (EF007219) | 16 mm |
| Suitable for (EF000073) | Flat rail |
| Width clamp (EF007092) | 25 mm |
| Max. conductor cross section (EF004969) | 0 mm² |
| Max. rated operation current Ie (EF007356) | 100 A |
| Suitable for round conductor connection (EF007258) | Yes |
| Suitable for sector conductor connection (EF007260) | No |
| Suitable for strip conductor connection (EF007242) | Yes |
