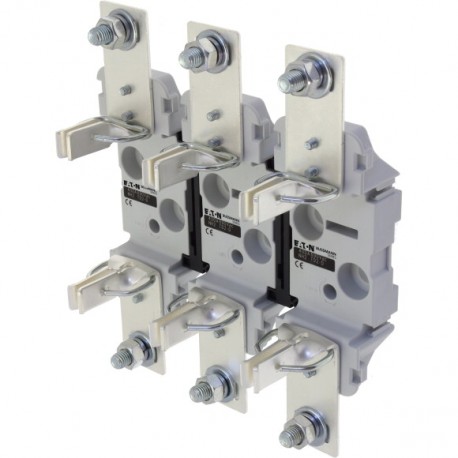

EATON - MOELLER TD2-DD TD2-DD EATON ELECTRIC Fuse-base, LV, 400 A, AC 690 V, NH2, 3P, IEC, double clip, DIN rail mount View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TD2-DD EATON ELECTRIC Fuse-base, LV, 400 A, AC 690 V, NH2, 3P, IEC, double clip, DIN rail mount

TD2-DD

TD2DD

EATON - MOELLER

1 Pcs.

NH2 Triple Pole Base Double Clip CE NH2 Triple Pole Base Double Clip CE - Fuse base, low voltage, 400 A, AC 690 V, NH2, 3P, IEC, double clip, DIN rail mounting IP protection kit, Low voltage NH fuse base accessory, Number of poles: Three-pole, Rated current (gl/gG): 400 A, Construction size: NH2, Voltage rating: 690 V a.c., Mounting method: DIN rail, Double Clip

Automation > Low Voltage HRC fuse base
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A fuse-base functions as a sturdy terminal mounting foundation for low-voltage industrial fuse links, commonly deployed in main switchboards and heavy machinery distribution boxes. Engineers utilize these robust triple-pole assemblies to establish safe, reliable power routing pathways across multi-phase installations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: TD2-DD
  • Catalogue code: TD2DD

More info

▲
Fuse base, low voltage, 400 A, AC 690 V, NH2, 3P, IEC, double clip, DIN rail mounting
Fuse accessory, fuse-base, low voltage, 400 A, AC 690 V, NH2, 3P, IEC, double clip, DIN rail mounting, IEC 60269-1, with thermoplastic body. Optional accessories: clip-in phase barriers, terminal shrouds, fuse covers, microswitch, IP20 fingersafe protection kits, neutral links, phase barriers

Delivery program

Product range
Fuse accessory
Basic function
Fuse-base
Field of application
low voltage
Rated current [I]
400 A
Rated voltage
AC 690 V
Construction size
NH2
Description
double clip
DIN rail mounting
Number of poles
3P
Standard/Approval
IEC
Material
Thermoplastic body
Standards/Regulations
IEC 60269-1
Optional accessories
clip-in phase barriers
terminal shrouds
fuse-covers
microswitch
IP20 finger-safe protection kits
neutral links
phase barriers

Technical data ETIM 7.0

Circuit breakers and fuses (EG000020) / Low Voltage HRC fuse base (EC000067)
Electric engineering, automation, process control engineering / Electrical installation, device / Safety fuse systems / Low-Voltage HRC fuse base ([email protected] [AKE278013])
Construction size
NH2
Number of poles
3
Rated current
400 A
Bus-mounting type
Yes
Swivelling mechanism
Yes
