View larger
Images are for illustrative purposes only. Please refer to data sheet for details

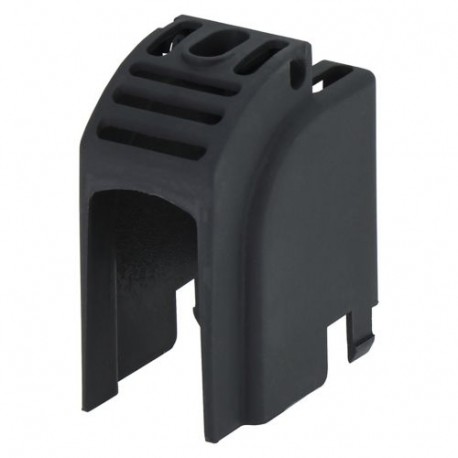

TD00-IP20 EATON ELECTRIC IP protection kit, LV, 160 A, AC 690 V, NH00, 3P, IEC, IP20
TD00-IP20
TD00IP20
EATON - MOELLER
1 Pcs.
NH00 IP20 Triple Pole Protection kit
Eaton Bussmann series low voltage NH IP protection kit, 160 A, 690 V, Three-pole, NH00
Automation > Accessories/spare parts for Low Voltage HRC fuse bases
Bussmann Series Low Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Bussmann series low voltage NH IP protection kit
Catalog Number
TD00-IP20
Model Code
NH00 IP20 Triple Pole Protection kit
UPC
051712371704
Product Length/Depth
696 mm
Product Height
309 mm
Product Width
174 mm
Product Weight
546 g
Compliances
CE
RoHS Compliant
RoHS Compliant
Certifications
IEC
Electrical rating
Amperage Rating
160 A
Voltage rating
690 V
Compatible fuse
Fuse size
NH00
Product specifications
Number of Poles
Three-pole
Degree of protection
IP20
