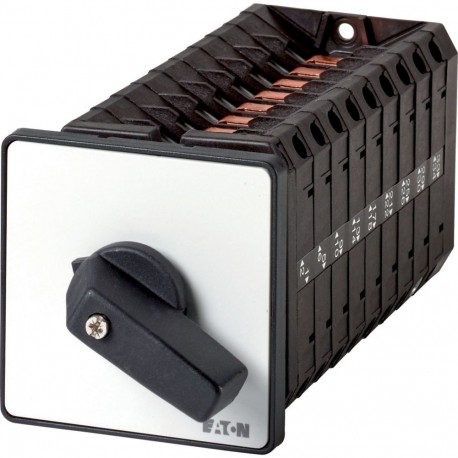

EATON - MOELLER T5B-9-8365/E T5B-9-8365/E 090957 Y7-90957 EATON ELECTRIC Changeoverswitches, Contacts: 18, 63 A, front plate: 1-0-2, 60 °.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5B-9-8365/E 090957 Y7-90957 EATON ELECTRIC Changeoverswitches, Contacts: 18, 63 A, front plate: 1-0-2, 60 °..

T5B-9-8365/E

090957

Y7-90957

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 18, 63 A, front plate: 1-0-2, 60 °, maintained, flush mounting Switch Switch 18 poles 63 A Indicator plate: 1-0-2 60° Eaton Moeller® series T5B Changeoverswitches, T5B, 63 A, flush mounting, 9 contact unit(s), Contacts: 18, 60 °, maintained, With 0 (Off) position, 1-0-2, Design number 8365 Changeover switch, Product range: Control switches, Part group reference: T5B, with black thumb grip and front plate, Contacts: 18, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: 1-0-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 30 kW, Rated uninterrupted current: Iu = 63 A, 9 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller T5B-9-8365/E is a heavy-duty changeoverswitch designed to handle complex multi-circuit switching configurations in industrial automation environments. Such rotary switches allow operators to safely alternate power distribution paths under load. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Reverser
  • Number of poles (EF001391): 9
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 63 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 41 A
  • Rated operation power at AC-3, 400 V (EF001364): 22 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T5B Changeover switch
Catalog Number
090957
Model Code
T5B-9-8365/E
EAN
4015080909576
Product Length/Depth
223 mm
Product Height
88 mm
Product Width
88 mm
Product Weight
1.4 kg
Certifications
UL
CSA-C22.2 No. 94
CSA Class No.: 3211-07
UL Category Control No.: NLRV
IEC/EN 60947
CSA-C22.2 No. 60947-4-1-14
CSA
CE
IEC/EN 60947-3
UL 60947-4-1
UL File No.: E36332
VDE 0660
CSA File No.: 012528
IEC/EN 60204
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
