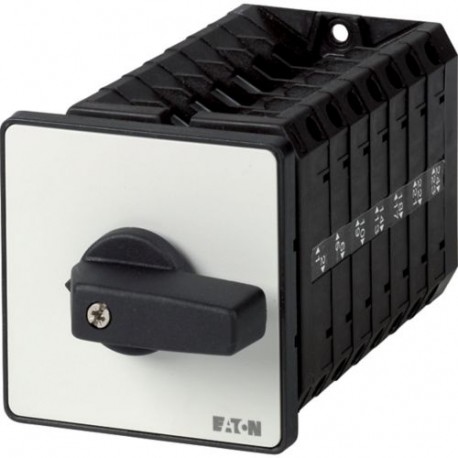

EATON - MOELLER T5B-7-8363/E T5B-7-8363/E 091422 Y7-91422 EATON ELECTRIC Changeoverswitches, Contacts: 14, 63 A, front plate: 1-0-2, 60 °.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5B-7-8363/E 091422 Y7-91422 EATON ELECTRIC Changeoverswitches, Contacts: 14, 63 A, front plate: 1-0-2, 60 °..

T5B-7-8363/E

091422

Y7-91422

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 14, 63 A, front plate: 1-0-2, 60 °, maintained, flush mounting Switch Switch 14 poles 63 A Indicator plate: 1-0-2 60° Eaton Moeller® series T5B Changeoverswitches, T5B, 63 A, flush mounting, 7 contact unit(s), Contacts: 14, 60 °, maintained, With 0 (Off) position, 1-0-2, Design number 8363 Changeover switch, Product range: Control switches, Part group reference: T5B, with black thumb grip and front plate, Contacts: 14, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: 1-0-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 30 kW, Rated uninterrupted current: Iu = 63 A, 7 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller changeover switch (part number T5B-7-8363/E) is a robust rotary control device designed to manually redirect electrical paths, shift between alternative power sources, or reconfigure circuit logic in demanding industrial environments. These switches provide safe manual operation for high-current applications. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model: Reverser
  • Number of poles: 7
  • With zero (off) position: Yes
  • With retraction in 0-position: No
  • Rated permanent current Iu: 63 A
  • Rated operation current Ie at AC-3, 400 V: 41 A
  • Rated operation power at AC-3, 400 V: 22 kW
  • Degree of protection (IP), front side: IP65
  • Degree of protection (NEMA), front side: 12
  • Suitable for floor mounting: No
  • Suitable for front mounting: Yes
  • Suitable for distribution board installation: No
  • Suitable for intermediate mounting: No
  • Complete device in housing: No
  • Housing material: Plastic
  • Type of control element: Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T5B Changeover switch
Catalog Number
091422
Model Code
T5B-7-8363/E
EAN
4015080914228
Product Length/Depth
190 mm
Product Height
88 mm
Product Width
88 mm
Product Weight
1.13 kg
Certifications
UL 60947-4-1
UL
UL Category Control No.: NLRV
IEC/EN 60947-3
CSA File No.: 012528
CSA-C22.2 No. 94
CE
IEC/EN 60947
UL File No.: E36332
IEC/EN 60204
CSA-C22.2 No. 60947-4-1-14
CSA
VDE 0660
CSA Class No.: 3211-07
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
