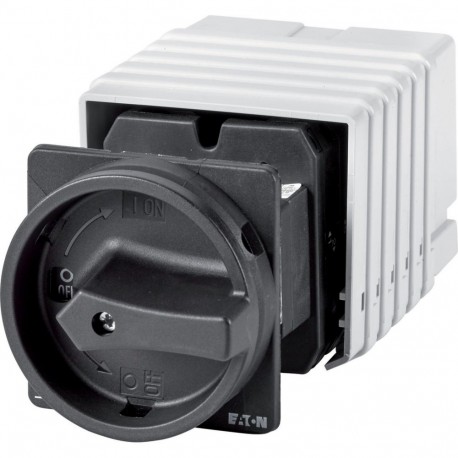

EATON - MOELLER T5B-6-15168/V/SVB-SW T5B-6-15168/V/SVB-SW 091818 Y7-91818 EATON ELECTRIC Main switch, 9-pole + 2 N/O + 1 N/C, 63 A, STOP function.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5B-6-15168/V/SVB-SW 091818 Y7-91818 EATON ELECTRIC Main switch, 9-pole + 2 N/O + 1 N/C, 63 A, STOP function..

T5B-6-15168/V/SVB-SW

091818

Y7-91818

EATON - MOELLER

1 Pcs.

Main switch, 9-pole + 2 N/O + 1 N/C, 63 A, STOP function, 90 °, rear mounting General switch; 9-pole + 2 NO + 1 NC; 63; Lever Black; Lockable in position (OFF); 90 °; Mounting bottom panel Eaton Moeller® series T5B Main switch, T5B, 63 A, rear mounting, 6 contact unit(s), 9-pole, 2 N/O, 1 N/C, STOP function, With black rotary handle and locking ring Main switch, Product range: Main switch, maintenance switch, Repair switch, Part group reference: T5B, Stop Function: STOP function, With black rotary handle and locking ring, 9-pole, Degree of Protection: Front IP65, Design: rear mounting, Switching angle: 90 °, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 30 kW, Rated uninterrupted current: Iu = 63 A, 6 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered for complex switching configurations, the Eaton Moeller T5B-6-15168/V/SVB-SW is a high-capacity cam switch and main disconnect device used to control multi-circuit electrical systems and heavy industrial machinery. Heavy-duty disconnects allow precise manual handling of extensive pole configurations during operational shutdowns.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 63 A
  • Rated permanent current at AC-21, 400 V (EF009165): 63 A
  • Rated operation power at AC-3, 400 V (EF001364): 22 kW
  • Rated short-time withstand current lcw (EF007050): 1.3 kA
  • Rated operation power at AC-23, 400 V (EF007027): 30 kW
  • Switching power at 400 V (EF009166): 30 kW
  • Conditioned rated short-circuit current Iq (EF001444): 2 kA
  • Number of poles (EF001391): 9
  • Motor drive optional (EF007386): No

More info

▲

General specifications

Product Name
Eaton Moeller® series T5B Main switch
Catalog Number
091818
Model Code
T5B-6-15168/V/SVB-SW
EAN
4015080918189
Product Length/Depth
221 mm
Product Height
88 mm
Product Width
88 mm
Product Weight
1.065 kg
Certifications
IEC/EN 60947
IEC/EN 60204
CSA
CSA-C22.2 No. 60947-4-1-14
VDE 0660
CSA Class No.: 3211-05
CE
CSA-C22.2 No. 94
CSA File No.: 012528
IEC/EN 60947-3
UL 60947-4-1
UL
UL Category Control No.: NLRV
UL File No.: E36332
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
