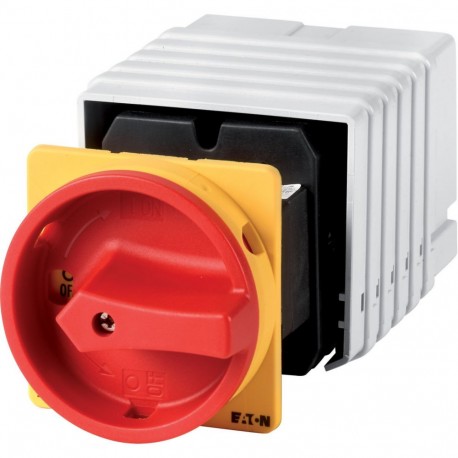

EATON - MOELLER T5B-6-15168/V/SVB T5B-6-15168/V/SVB 091819 Y7-91819 EATON ELECTRIC Main switch, 9-pole + 2 N/O + 1 N/C, 63 A, Emergency-Stop f.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5B-6-15168/V/SVB 091819 Y7-91819 EATON ELECTRIC Main switch, 9-pole + 2 N/O + 1 N/C, 63 A, Emergency-Stop f..

T5B-6-15168/V/SVB

091819

Y7-91819

EATON - MOELLER

1 Pcs.

Main switch, 9-pole + 2 N/O + 1 N/C, 63 A, Emergency-Stop function, 90 °, rear mounting General switch; 9-pole + 2 NO + 1 NC; 63; Handle Red/Yellow Lockable in position (OFF); 90 °; Mounting bottom panel Eaton Moeller® series T5B Main switch, T5B, 63 A, rear mounting, 6 contact unit(s), 9-pole, 2 N/O, 1 N/C, Emergency switching off function, With red rotary handle and yellow locking ring Main switch, Product range: Main switch, maintenance switch, Repair switch, Part group reference: T5B, Stop Function: Emergency switching off function, With red rotary handle and yellow locking ring, 9-pole, Degree of Protection: Front IP65, Design: rear mounting, Switching angle: 90 °, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 30 kW, Rated uninterrupted current: Iu = 63 A, 6 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller T5B-6-15168/V/SVB is a main switch built to safely isolate electrical circuits during maintenance and emergency situations. Industrial control panels and heavy machinery rely on these devices to interrupt main power supplies securely and prevent accidental startup.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): Yes
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 63 A
  • Rated permanent current at AC-21, 400 V (EF009165): 63 A
  • Rated operation power at AC-3, 400 V (EF001364): 22 kW
  • Rated short-time withstand current lcw (EF007050): 1.3 kA
  • Rated operation power at AC-23, 400 V (EF007027): 30 kW
  • Switching power at 400 V (EF009166): 30 kW
  • Conditioned rated short-circuit current Iq (EF001444): 2 kA
  • Number of poles (EF001391): 9
  • Motor drive optional (EF007386): No

More info

▲

General specifications

Product Name
Eaton Moeller® series T5B Main switch
Catalog Number
091819
Model Code
T5B-6-15168/V/SVB
EAN
4015080918196
Product Length/Depth
221 mm
Product Height
88 mm
Product Width
88 mm
Product Weight
1.065 kg
Certifications
CSA-C22.2 No. 60947-4-1-14
UL Category Control No.: NLRV
CE
IEC/EN 60947
VDE 0660
CSA File No.: 012528
CSA-C22.2 No. 94
CSA Class No.: 3211-05
IEC/EN 60947-3
UL File No.: E36332
IEC/EN 60204
UL
UL 60947-4-1
CSA
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
