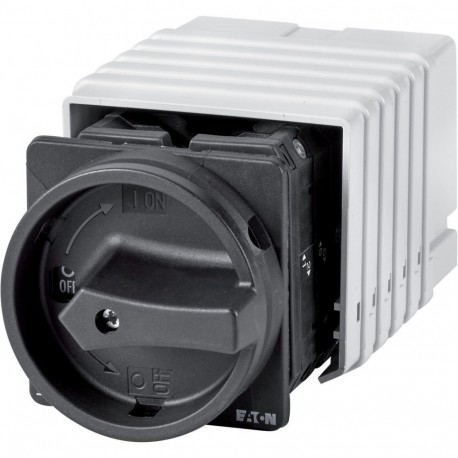

EATON - MOELLER T5B-6-15168/EA/SVB-SW T5B-6-15168/EA/SVB-SW 091820 Y7-91820 EATON ELECTRIC Main switch, 9-pole + 2 N/O + 1 N/C, 63 A, STOP functio.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5B-6-15168/EA/SVB-SW 091820 Y7-91820 EATON ELECTRIC Main switch, 9-pole + 2 N/O + 1 N/C, 63 A, STOP functio..

T5B-6-15168/EA/SVB-SW

091820

Y7-91820

EATON - MOELLER

1 Pcs.

Main switch, 9-pole + 2 N/O + 1 N/C, 63 A, STOP function, 90 °, flush mounting General switch; 9-pole + 2 NO + 1 NC; 63; Lever Black; Lockable in position (OFF); 90 °; Mounting Eaton Moeller® series T5B Main switch, T5B, 63 A, flush mounting, 6 contact unit(s), 9-pole, 2 N/O, 1 N/C, STOP function, With black rotary handle and locking ring Main switch, Product range: Main switch, maintenance switch, Repair switch, Part group reference: T5B, Stop Function: STOP function, With black rotary handle and locking ring, 9-pole, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 90 °, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 30 kW, Rated uninterrupted current: Iu = 63 A, 6 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Eaton Moeller T5B-6-15168/EA/SVB-SW main switch is a multi-pole switching apparatus built to control complex electrical circuits and motorized systems simultaneously. It ensures safe power isolation in industrial environments where multiple phases and auxiliary signal lines must be managed within a single unit.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 63 A
  • Rated permanent current at AC-21, 400 V (EF009165): 63 A
  • Rated operation power at AC-3, 400 V (EF001364): 22 kW
  • Rated short-time withstand current lcw (EF007050): 1.3 kA
  • Rated operation power at AC-23, 400 V (EF007027): 30 kW
  • Switching power at 400 V (EF009166): 30 kW
  • Conditioned rated short-circuit current Iq (EF001444): 2 kA
  • Number of poles (EF001391): 9
  • Motor drive optional (EF007386): No

More info

▲

General specifications

Product Name
Eaton Moeller® series T5B Main switch
Catalog Number
091820
Model Code
T5B-6-15168/EA/SVB-SW
EAN
4015080918202
Product Length/Depth
206 mm
Product Height
88 mm
Product Width
88 mm
Product Weight
1.245 kg
Certifications
CSA-C22.2 No. 60947-4-1-14
UL Category Control No.: NLRV
CSA
UL 60947-4-1
CSA Class No.: 3211-05
UL File No.: E36332
CSA File No.: 012528
IEC/EN 60947-3
CSA-C22.2 No. 94
CE
IEC/EN 60947
UL
IEC/EN 60204
VDE 0660
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
