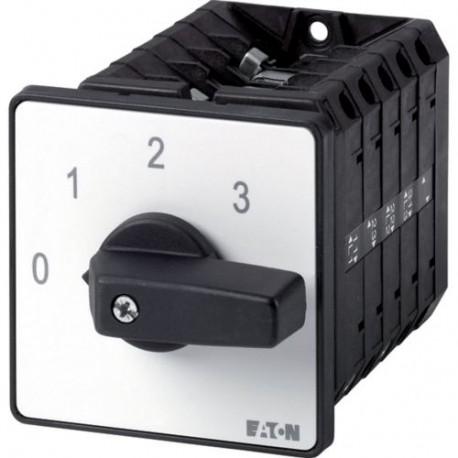

EATON - MOELLER T5B-5-15899/E T5B-5-15899/E 091950 Y7-91950 EATON ELECTRIC Star-delta switches, Contacts: 10, 63 A, front plate: 0-Y-D, 60.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5B-5-15899/E 091950 Y7-91950 EATON ELECTRIC Star-delta switches, Contacts: 10, 63 A, front plate: 0-Y-D, 60..

T5B-5-15899/E

091950

Y7-91950

EATON - MOELLER

1 Pcs.

Star-delta switches, Contacts: 10, 63 A, front plate: 0-Y-D, 60 °, maintained, flush mounting, SOND 30 Switch Star-Triangle; 10-pole; 63; rating Plate: 0 -, And-D; 60 °; Interlock; recessed Mounting; SOND 30 Eaton Moeller® series T5B Star-delta switches, T5B, 63 A, flush mounting, 5 contact unit(s), Contacts: 10, 60 °, maintained, With 0 (Off) position, 0-Y-D, SOND 30, Design number 15899 Star-delta switch, Product range: Control switches, Part group reference: T5B, with black thumb grip and front plate, Notes: SOND 30, Contacts: 10, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: 0-Y-D, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 30 kW, Rated uninterrupted current: Iu = 63 A, 5 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller T5B-5-15899/E star-delta switch is a specialized manual control device engineered to manage the reduced-voltage startup of heavy induction motors in industrial settings. These components allow operators to safely transition motor windings from star to delta configurations, limiting inrush current and protecting electrical distribution networks from high startup loads.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Star-delta switch
  • Number of poles (EF001391): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 63 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 41 A
  • Rated operation power at AC-3, 400 V (EF001364): 37 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T5B Star-delta switch
Catalog Number
091950
Model Code
T5B-5-15899/E
EAN
4015080919506
Product Length/Depth
157 mm
Product Height
88 mm
Product Width
88 mm
Product Weight
0.86 kg
Certifications
CSA-C22.2 No. 60947-4-1-14
UL 60947-4-1
CE
UL File No.: E36332
IEC/EN 60204
CSA Class No.: 3211-07
CSA File No.: 012528
VDE 0660
IEC/EN 60947
UL Category Control No.: NLRV
UL
CSA
IEC/EN 60947-3
CSA-C22.2 No. 94
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
