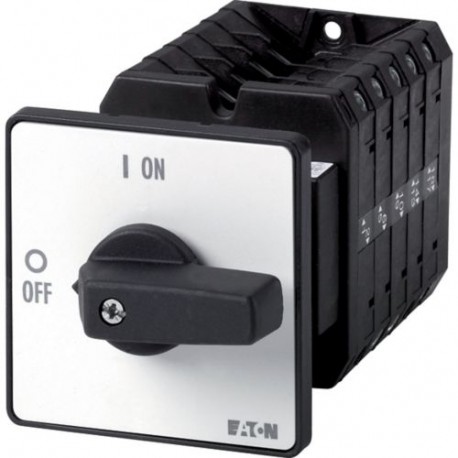

EATON - MOELLER T5B-5-15896/Z T5B-5-15896/Z 091951 Y7-91951 EATON ELECTRIC Reversing star-delta switches, Contacts: 10, 63 A, front plate:.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5B-5-15896/Z 091951 Y7-91951 EATON ELECTRIC Reversing star-delta switches, Contacts: 10, 63 A, front plate:..

T5B-5-15896/Z

091951

Y7-91951

EATON - MOELLER

1 Pcs.

Reversing star-delta switches, Contacts: 10, 63 A, front plate: D-Y-0-Y-D, 60 °, maintained, rear mounting, SOND 29 Switch Star-delta with reversing; 10-pole; 63; rating Plate: D-y-0-y-D; 60 °; Interlocking; Installation bottom panel; SOND 29 Eaton Moeller® series T5B Reversing star-delta switches, T5B, 63 A, rear mounting, 5 contact unit(s), Contacts: 10, 60 °, maintained, With 0 (Off) position, D-Y-0-Y-D, SOND 29, Design number 15896 Turnaround star-delta switch, Product range: Control switches, Part group reference: T5B, with black thumb grip and front plate, Notes: SOND 29, Contacts: 10, Degree of Protection: Front IP65, Design: rear mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: D-Y-0-Y-D, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 30 kW, Rated uninterrupted current: Iu = 63 A, 5 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Reversing star-delta switches like the Eaton Moeller T5B-5-15896/Z are utilized in electrical installations to manage the startup sequence of large induction motors, helping to reduce inrush current. Operators rely on these units for safe directional control and smooth operational transitions in heavy-duty machinery.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Turnaround star-delta switch
  • Number of poles (EF001391): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 63 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 41 A
  • Rated operation power at AC-3, 400 V (EF001364): 37 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): Yes
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T5B Turnaround star-delta switch
Catalog Number
091951
Model Code
T5B-5-15896/Z
EAN
4015080919513
Product Length/Depth
198 mm
Product Height
88 mm
Product Width
88 mm
Product Weight
0.904 kg
Certifications
CE
UL Category Control No.: NLRV
CSA-C22.2 No. 94
UL File No.: E36332
VDE 0660
CSA Class No.: 3211-05
UL
CSA File No.: 012528
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947-3
CSA
IEC/EN 60947
UL 60947-4-1
IEC/EN 60204
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
