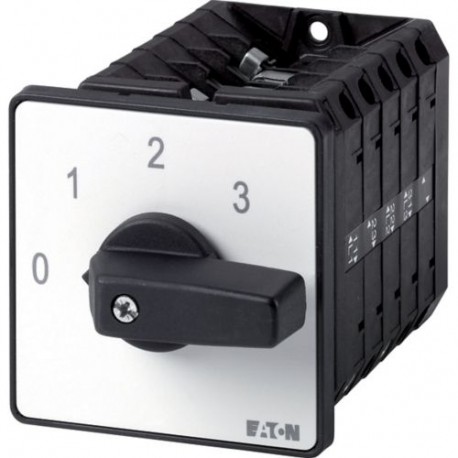

EATON - MOELLER T5B-5-15150/E T5B-5-15150/E 091980 Y7-91980 EATON ELECTRIC Step switches, Contacts: 9, 63 A, front plate: 1-3, 45 °, maint.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5B-5-15150/E 091980 Y7-91980 EATON ELECTRIC Step switches, Contacts: 9, 63 A, front plate: 1-3, 45 °, maint..

T5B-5-15150/E

091980

Y7-91980

EATON - MOELLER

1 Pcs.

Step switches, Contacts: 9, 63 A, front plate: 1-3, 45 °, maintained, flush mounting Step switch 9 poles 63 A Indicator plate: 1-3 45° Eaton Moeller® series T5B Step switches, T5B, 63 A, flush mounting, 5 contact unit(s), Contacts: 9, 45 °, maintained, Without 0 (Off) position, 1-3, Design number 15150 Step switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T5B, with black thumb grip and front plate, Contacts: 9, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 45 °, Switching performance: maintained, Without 0 (Off) position, 5 contact unit(s), Rated uninterrupted current: Iu= 63 A, front plate: 1-3

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Heavy-duty step switches such as the Eaton Moeller T5B-5-15150/E manage high-current sequential routing across multi-phase industrial networks, driving complex load shifting. Maintenance teams rely on these manual switching components to regulate multi-step operations safely. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Level switch
  • Number of poles (EF001391): 3
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 63 A
  • Number of switch positions (EF000231): 3
  • With zero (off) position (EF001416): No
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 88x88 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T5B Step switch
Catalog Number
091980
Model Code
T5B-5-15150/E
EAN
4015080919803
Product Length/Depth
157 mm
Product Height
88 mm
Product Width
88 mm
Product Weight
0.86 kg
Certifications
CSA File No.: 012528
IEC/EN 60204
CE
UL Category Control No.: NLRV
CSA
IEC/EN 60947
IEC/EN 60947-3
CSA-C22.2 No. 60947-4-1-14
CSA-C22.2 No. 94
VDE 0660
CSA Class No.: 3211-07
UL
UL 60947-4-1
UL File No.: E36332
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
