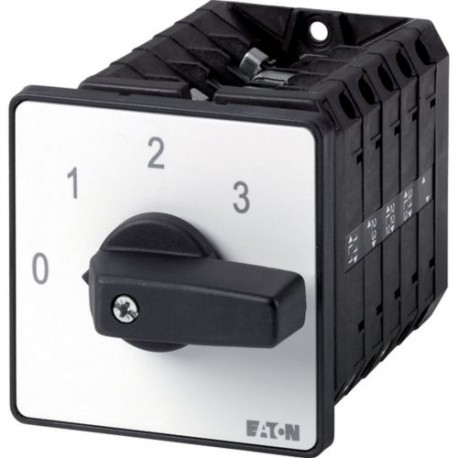

EATON - MOELLER T5B-5-15144/E T5B-5-15144/E 091983 Y7-91983 EATON ELECTRIC Step switches, Contacts: 9, 63 A, front plate: 0-3, 45 °, maint.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5B-5-15144/E 091983 Y7-91983 EATON ELECTRIC Step switches, Contacts: 9, 63 A, front plate: 0-3, 45 °, maint..

T5B-5-15144/E

091983

Y7-91983

EATON - MOELLER

1 Pcs.

Step switches, Contacts: 9, 63 A, front plate: 0-3, 45 °, maintained, flush mounting Switch steps; 9-pole; 63; rating Plate: 0-3; 45 °; Interlock; recessed Mounting Eaton Moeller® series T5B Step switches, T5B, 63 A, flush mounting, 5 contact unit(s), Contacts: 9, 45 °, maintained, With 0 (Off) position, 0-3, Design number 15144 Step switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T5B, with black thumb grip and front plate, Contacts: 9, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 45 °, Switching performance: maintained, With 0 (Off) position, 5 contact unit(s), Rated uninterrupted current: Iu= 63 A, front plate: 0-3

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series T5B Step switch
Catalog Number
091983
Model Code
T5B-5-15144/E
EAN
4015080919834
Product Length/Depth
157 mm
Product Height
88 mm
Product Width
88 mm
Product Weight
0.86 kg
Certifications
IEC/EN 60947
CSA-C22.2 No. 94
IEC/EN 60947-3
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60204
UL 60947-4-1
CE
UL Category Control No.: NLRV
CSA
VDE 0660
CSA Class No.: 3211-07
UL File No.: E36332
CSA File No.: 012528
UL
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

ETIM for 091983 Low-voltage industrial controls and switchgear (EC002611)
Feature Name Feature Value
Type of switch (EF003496) Level switch
Number of poles (EF001391) 3
Max. rated operation voltage Ue AC (EF007355) 690 V
Rated permanent current Iu (EF001389) 63 A
Number of switch positions (EF000231) 4
With zero (off) position (EF001416) Yes
With retraction in 0-position (EF002428) No
Device construction (EF008240) Built-in device
Width in number of modular spacings (EF002950) 0
Suitable for floor mounting (EF007243) No
Suitable for front mounting (EF007246) Yes
Suitable for distribution board installation (EF007262) No
Suitable for intermediate mounting (EF007264) No
Complete device in housing (EF007317) No
Type of control element (EF006976) Toggle
Front shield size (EF007176) 88x88 mm
Degree of protection (IP), front side (EF003118) IP65
Degree of protection (NEMA), front side (EF011961) 12
