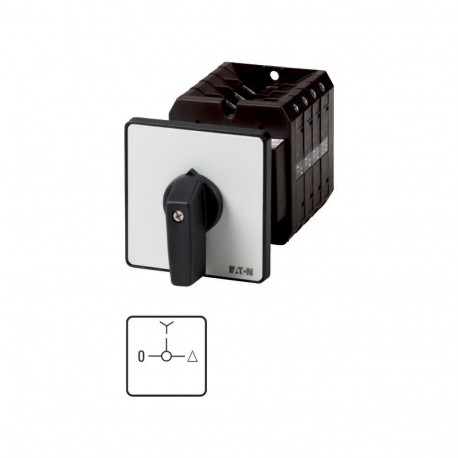

EATON - MOELLER T5B-4-8419/Z T5B-4-8419/Z 092037 Y7-92037 EATON ELECTRIC Star-delta switches, Contacts: 7, 63 A, front plate: 0-Y-D, 90 °.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5B-4-8419/Z 092037 Y7-92037 EATON ELECTRIC Star-delta switches, Contacts: 7, 63 A, front plate: 0-Y-D, 90 °..

T5B-4-8419/Z

092037

Y7-92037

EATON - MOELLER

1 Pcs.

Star-delta switches, Contacts: 7, 63 A, front plate: 0-Y-D, 90 °, maintained, rear mounting Switch Star-delta; 7-pole; 63; rating Plate: 0 -, And-D; 90 °; Latch; Mounting bottom panel Eaton Moeller® series T5B Star-delta switches, T5B, 63 A, rear mounting, 4 contact unit(s), Contacts: 7, 90 °, maintained, With 0 (Off) position, 0-Y-D, Design number 8419 Star-delta switch, Product range: Control switches, Part group reference: T5B, with black thumb grip and front plate, Contacts: 7, Degree of Protection: Front IP65, Design: rear mounting, Switching angle: 90 °, Switching performance: maintained, With 0 (Off) position, front plate: 0-Y-D, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 30 kW, Rated uninterrupted current: Iu = 63 A, 4 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller star-delta switch (part number T5B-4-8419/Z) is engineered to manage reduced-voltage starting for large induction motors, helping to minimize high inrush currents during startup. Industrial applications often utilize these switches to protect electrical grids and mechanical drives from severe startup stress.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Star-delta switch
  • Number of poles (EF001391): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 63 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 41 A
  • Rated operation power at AC-3, 400 V (EF001364): 37 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): Yes
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T5B Star-delta switch
Catalog Number
092037
Model Code
T5B-4-8419/Z
EAN
4015080920373
Product Length/Depth
182 mm
Product Height
88 mm
Product Width
88 mm
Product Weight
0.769 kg
Certifications
CSA-C22.2 No. 60947-4-1-14
UL
UL 60947-4-1
IEC/EN 60204
IEC/EN 60947
UL Category Control No.: NLRV
CE
UL File No.: E36332
CSA
VDE 0660
IEC/EN 60947-3
CSA Class No.: 3211-05
CSA-C22.2 No. 94
CSA File No.: 012528
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
