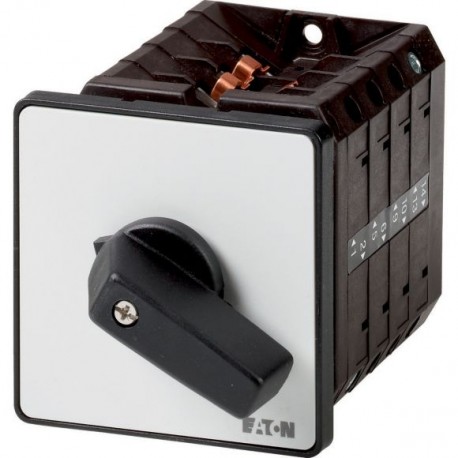

EATON - MOELLER T5B-2-SOND*/E T5B-2-SOND*/E 907925 Y7-907925 EATON ELECTRIC Non-standard switch, T5B, 63 A, flush mounting, 2 contact unit.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5B-2-SOND*/E 907925 Y7-907925 EATON ELECTRIC Non-standard switch, T5B, 63 A, flush mounting, 2 contact unit..

T5B-2-SOND*/E

907925

Y7-907925

EATON - MOELLER

10 Pcs.

Non-standard switch, T5B, 63 A, flush mounting, 2 contact unit(s) T5B-2-SOND*/E Eaton Moeller® series T5B Non-standard switch, T5B, 63 A, flush mounting, 2 contact unit(s) Non-standard switch, Product range: Non-standard switch, Part group reference: T5B, Notes: customized version according to form, Degree of Protection: Front IP65, Design: flush mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 30 kW, Rated uninterrupted current: Iu = 63 A, 2 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Non-standard control and power switches are specialized electrical components engineered to handle unique circuit configurations and customized switching requirements in machine building and panel construction. The T5B-2-SOND*/E 907925 Y7-907925 EATON ELECTRIC Non-standard switch, T5B, 63 A, flush mounting, 2 contact unit.. from Eaton Moeller provides robust manual switching capability for demanding operational loads.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 63 A
  • Rated permanent current at AC-23, 400 V (EF011777): 63 A
  • Rated permanent current at AC-21, 400 V (EF009165): 63 A
  • Rated operation power at AC-3, 400 V (EF001364): 22 kW
  • Rated short-time withstand current lcw (EF007050): 1.3 kA
  • Rated operation power at AC-23, 400 V (EF007027): 30 kW
  • Switching power at 400 V (EF009166): 30 kW
  • Conditioned rated short-circuit current Iq (EF001444): 2 kA
  • Motor drive optional (EF007386): No

More info

▲

General specifications

Product Name
Eaton Moeller® series T5B Non-standard switch
Catalog Number
907925
Model Code
T5B-2-SOND*/E
Product Length/Depth
108 mm
Product Height
88 mm
Product Width
88 mm
Product Weight
0.457 kg
Certifications
VDE 0660
IEC/EN 60947-3
IEC/EN 60204
IEC/EN 60947

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
