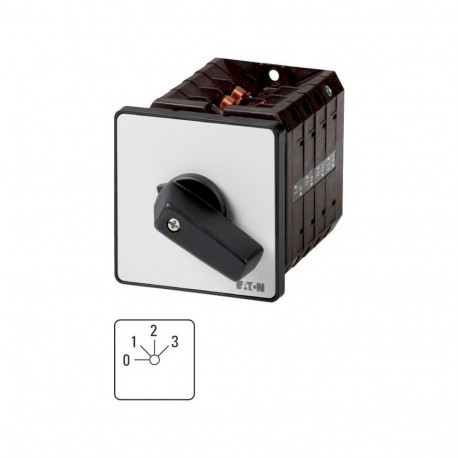

T5B-2-142/E 094096 Y7-94096 EATON ELECTRIC Step switches, Contacts: 3, 63 A, front plate: 0-5, 45 °, maintai..
T5B-2-142/E
094096
Y7-94096
EATON - MOELLER
1 Pcs.
Automation > Control switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Heavy-duty step switches like the Eaton Moeller T5B-2-142/E facilitate manual multi-position load selection in high-current industrial power distribution networks. These robust rotary switches allow operators to cycle through multiple distinct operational stages reliably under heavy electrical loads.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Type of switch (EF003496): Level switch
- Number of poles (EF001391): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated permanent current Iu (EF001389): 63 A
- Number of switch positions (EF000231): 6
- With zero (off) position (EF001416): Yes
- With retraction in 0-position (EF002428): No
- Device construction (EF008240): Built-in device
- Width in number of modular spacings (EF002950): 0
- Suitable for floor mounting (EF007243): No
- Suitable for front mounting (EF007246): Yes
- Suitable for distribution board installation (EF007262): No
- Suitable for intermediate mounting (EF007264): No
- Complete device in housing (EF007317): No
- Type of control element (EF006976): Toggle
- Front shield size (EF007176): 88x88 mm
More info
▲General specifications
UL File No.: E36332
CSA
IEC/EN 60204
UL 60947-4-1
UL Category Control No.: NLRV
CE
CSA Class No.: 3211-07
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947-3
UL
CSA File No.: 012528
CSA-C22.2 No. 94
IEC/EN 60947
