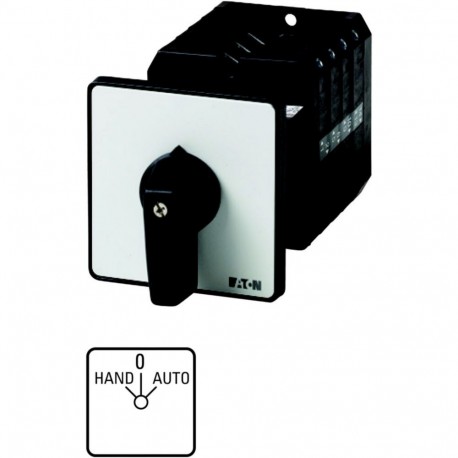

EATON - MOELLER T5B-1-15431/Z T5B-1-15431/Z 094372 Y7-94372 EATON ELECTRIC Switch, Toggle Contacts: 2 63 rating Plate: HAND-0-AUTO 45 ° In.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5B-1-15431/Z 094372 Y7-94372 EATON ELECTRIC Switch, Toggle Contacts: 2 63 rating Plate: HAND-0-AUTO 45 ° In..

T5B-1-15431/Z

094372

Y7-94372

EATON - MOELLER

1 Pcs.

Switch, Toggle; Contacts: 2; 63; rating Plate: HAND-0-AUTO; 45 °; Interlock; Mounting bottom panel Switch 2-pole switch 63 A Indicator plate: Hand-0-AUTO 45 Eaton Moeller® series T5B Changeoverswitches, T5B, 63 A, rear mounting, 1 contact unit(s), Contacts: 2, 45 °, maintained, With 0 (Off) position, HAND-0-AUTO, Design number 15431 Changeover switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T5B, with black thumb grip and front plate, Contacts: 2, Degree of Protection: Front IP65, Design: rear mounting, Switching angle: 45 °, Switching performance: maintained, With 0 (Off) position, 1 contact unit(s), Rated uninterrupted current: Iu= 63 A, front plate: HAND-0-AUTO

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Switch, Toggle Contacts: 2 63 rating Plate: HAND-0-AUTO 45 ° In... part T5B-1-15431/Z 094372 Y7-94372 EATON ELECTRIC is a heavy-duty manual control device engineered for switching high-current industrial loads between distinct operating states. Engineers integrate these durable control switches into automation cabinets to facilitate reliable mode selection, such as alternating between manual and automated machine control.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Reverser
  • Number of poles (EF001391): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 63 A
  • Number of switch positions (EF000231): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): Yes
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 88x88 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T5B Changeover switch
Catalog Number
094372
Model Code
T5B-1-15431/Z
EAN
4015080943723
Product Length/Depth
132 mm
Product Height
88 mm
Product Width
88 mm
Product Weight
0.364 kg
Certifications
CSA Class No.: 3211-05
UL File No.: E36332
VDE 0660
CSA-C22.2 No. 94
UL
IEC/EN 60947-3
CE
CSA File No.: 012528
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60204
UL 60947-4-1
UL Category Control No.: NLRV
CSA
IEC/EN 60947
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
