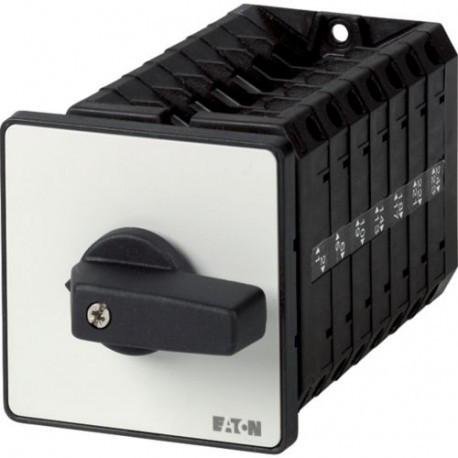

EATON - MOELLER T5-7-8371/E T5-7-8371/E 094655 Y7-94655 EATON ELECTRIC Changeoverswitches, Contacts: 14, 100 A, front plate: 1-2, 90 °, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5-7-8371/E 094655 Y7-94655 EATON ELECTRIC Changeoverswitches, Contacts: 14, 100 A, front plate: 1-2, 90 °, ..

T5-7-8371/E

094655

Y7-94655

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 14, 100 A, front plate: 1-2, 90 °, maintained, flush mounting Switch Switch; 14 poles; 100 A; Indicator plate: 1-2; 90 °; Eaton Moeller® series T5 Changeoverswitches, T5, 100 A, flush mounting, 7 contact unit(s), Contacts: 14, 90 °, maintained, Without 0 (Off) position, 1-2, Design number 8371 Changeover switch, Product range: Control switches, Part group reference: T5, with black thumb grip and front plate, Contacts: 14, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 90 °, Switching performance: maintained, Without 0 (Off) position, front plate: 1-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 55 kW, Rated uninterrupted current: Iu = 100 A, 7 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Manage demanding circuit redirection using the Eaton Moeller T5-7-8371/E changeover switch, built for robust industrial switching tasks. Changeover switches provide reliable manual transfer between distinct power sources or operational pathways within complex machinery installations. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Model: Reverser
  • Number of poles: 7
  • With zero (off) position: No
  • With retraction in 0-position: No
  • Rated permanent current Iu: 100 A
  • Rated operation current Ie at AC-3, 400 V: 55 A
  • Rated operation power at AC-3, 400 V: 30 kW
  • Degree of protection (IP), front side: IP65
  • Degree of protection (NEMA), front side: 12
  • Suitable for floor mounting: No
  • Suitable for front mounting: Yes
  • Suitable for distribution board installation: No
  • Suitable for intermediate mounting: No
  • Complete device in housing: No
  • Housing material: Plastic
  • Type of control element: Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T5 Changeover switch
Catalog Number
094655
Model Code
T5-7-8371/E
EAN
4015080946557
Product Length/Depth
190 mm
Product Height
88 mm
Product Width
88 mm
Product Weight
1.13 kg
Certifications
IEC/EN 60947
IEC/EN 60947-3
VDE 0660
IEC/EN 60204
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
