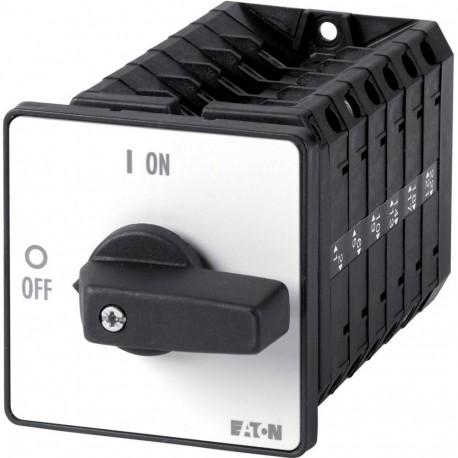

EATON - MOELLER T5-6-15252/E T5-6-15252/E 094879 Y7-94879 EATON ELECTRIC Step switches, Contacts: 11, 100 To, front plate: 1-11, 30 °, ma.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5-6-15252/E 094879 Y7-94879 EATON ELECTRIC Step switches, Contacts: 11, 100 To, front plate: 1-11, 30 °, ma..

T5-6-15252/E

094879

Y7-94879

EATON - MOELLER

1 Pcs.

Step switches, Contacts: 11, 100 To, front plate: 1-11, 30 °, maintained, flush mounting Step switch 11 pole 100 A Indicator plate: 1-11 30° Eaton Moeller® series T5 Step switches, T5, 100 A, flush mounting, 6 contact unit(s), Contacts: 11, 30 °, maintained, Without 0 (Off) position, 1-11, Design number 15252 Step switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T5, with black thumb grip and front plate, Contacts: 11, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 30 °, Switching performance: maintained, Without 0 (Off) position, 6 contact unit(s), Rated uninterrupted current: Iu= 100 A, front plate: 1-11

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller T5-6-15252/E step switch delivers heavy-duty multi-position control for demanding industrial power distribution networks.

High-current level switches are frequently integrated into large machinery and switchgear assemblies to manage extensive electrical loads across multiple stages. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Level switch
  • Number of poles (EF001391): 1
  • Max. rated operation voltage Ue AC (EF007355): 600 V
  • Rated permanent current Iu (EF001389): 100 A
  • Number of switch positions (EF000231): 11
  • With zero (off) position (EF001416): No
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 88x88 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T5 Step switch
Catalog Number
094879
Model Code
T5-6-15252/E
EAN
4015080948797
Product Length/Depth
174 mm
Product Height
88 mm
Product Width
88 mm
Product Weight
0.995 kg
Certifications
IEC/EN 60947-3
VDE 0660
IEC/EN 60947
IEC/EN 60204
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
