> EATON - MOELLER > Disconnectors and Cam Switches > 095014

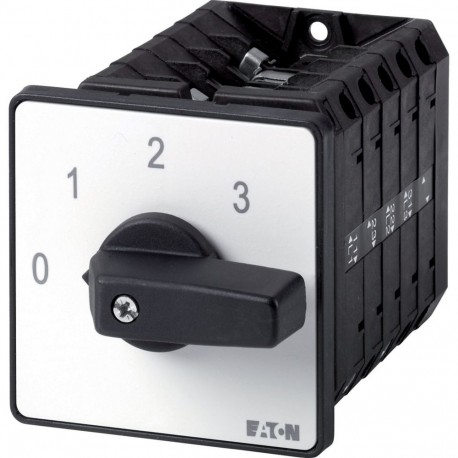

EATON - MOELLER T5-5-8453/E T5-5-8453/E 095014 Y7-95014 EATON ELECTRIC Reversing multi-speed switches, Contacts: 10, 100 A, 2 speeds, 2 .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5-5-8453/E 095014 Y7-95014 EATON ELECTRIC Reversing multi-speed switches, Contacts: 10, 100 A, 2 speeds, 2 ..

T5-5-8453/E

095014

Y7-95014

EATON - MOELLER

1 Pcs.

Reversing multi-speed switches, Contacts: 10, 100 A, 2 speeds, 2 separate windings, front plate: 2-1-0-1-2, 60 °, maintained, flush mounting Multi-speed switch with 10-pole reversal 100 A 2 Eaton Moeller® series T5 Reversing multi-speed switches, T5, 100 A, flush mounting, 5 contact unit(s), Contacts: 10, 60 °, maintained, With 0 (Off) position, 2-1-0-1-2, Design number 8453 Reversing multi-speed switch, Product range: Control switches, Part group reference: T5, with black thumb grip and front plate, Contacts: 10, Degree of Protection: Front IP65, Design: flush mounting, switching function: 2 speeds, 2 separate windings, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: 2-1-0-1-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 55 kW, Rated uninterrupted current: Iu = 100 A, 5 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series T5 Insulated enclosure
Catalog Number
095014
Model Code
T5-5-8453/E
EAN
4015080950141
Product Length/Depth
157 mm
Product Height
88 mm
Product Width
88 mm
Product Weight
0.86 kg
Certifications
IEC/EN 60947
VDE 0660
IEC/EN 60947-3
IEC/EN 60204
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

ETIM for 095014 Low-voltage industrial controls and switchgear (EC001105)
Feature Name Feature Value
Model (EF000010) Pole switch
Number of poles (EF001391) 3
With zero (off) position (EF001416) Yes
With retraction in 0-position (EF002428) No
Rated permanent current Iu (EF001389) 100 A
Rated operation current Ie at AC-3, 400 V (EF001392) 55 A
Rated operation power at AC-3, 400 V (EF001364) 30 kW
Degree of protection (IP), front side (EF003118) IP65
Degree of protection (NEMA), front side (EF011961) 12
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Suitable for floor mounting (EF007243) No
Suitable for front mounting (EF007246) Yes
Suitable for distribution board installation (EF007262) No
Suitable for intermediate mounting (EF007264) No
Complete device in housing (EF007317) No
Housing material (EF001596) Plastic
Type of control element (EF006976) Short thumb-grip
Type of electrical connection of main circuit (EF006819) Screw connection
