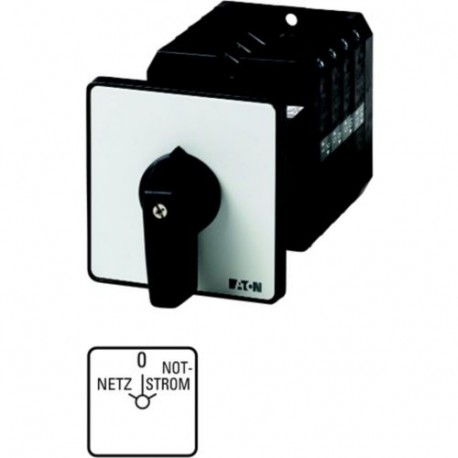

EATON - MOELLER T5-4-41/Z T5-4-41/Z 096052 Y7-96052 EATON ELECTRIC Changeoverswitches, Contacts: 8, 100 A, front plate: Netz-0-Notstro.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5-4-41/Z 096052 Y7-96052 EATON ELECTRIC Changeoverswitches, Contacts: 8, 100 A, front plate: Netz-0-Notstro..

T5-4-41/Z

096052

Y7-96052

EATON - MOELLER

1 Pcs.

Changeoverswitches, Contacts: 8, 100 A, front plate: Netz-0-Notstrom, 45 °, maintained, rear mounting Switch Switch; 8-pole; 100 To; rating Plate: Netz-0-Notstrom; 45 °; Mounting bottom panel Eaton Moeller® series T5 Changeoverswitches, T5, 100 A, rear mounting, 4 contact unit(s), Contacts: 8, 45 °, maintained, With 0 (Off) position, Netz-0-Notstrom, Design number 41 Changeover switch, Product range: Control switches, Part group reference: T5, with black thumb grip and front plate, Contacts: 8, Degree of Protection: Front IP65, Design: rear mounting, Switching angle: 45 °, Switching performance: maintained, With 0 (Off) position, front plate: Netz-0-Notstrom, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 55 kW, Rated uninterrupted current: Iu = 100 A, 4 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Facilitating secure source transfer, this Eaton Moeller changeover switch (T5-4-41/Z) enables manual switching between primary grid power and backup generator supplies. Such transfer switches safeguard critical electrical infrastructure by preventing power source overlap during outages.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Reverser
  • Number of poles (EF001391): 4
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 100 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 55 A
  • Rated operation power at AC-3, 400 V (EF001364): 30 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): Yes
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T5 Changeover switch
Catalog Number
096052
Model Code
T5-4-41/Z
EAN
4015080960522
Product Length/Depth
182 mm
Product Height
88 mm
Product Width
88 mm
Product Weight
0.758 kg
Certifications
IEC/EN 60947
IEC/EN 60204
IEC/EN 60947-3
VDE 0660
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
