EATON - MOELLER T5-4-15164/V/SVB-SW T5-4-15164/V/SVB-SW 096124 Y7-96124 EATON ELECTRIC Main switch, 6 pole + 1 N/O + 1 N/C, 100 A, STOP function.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

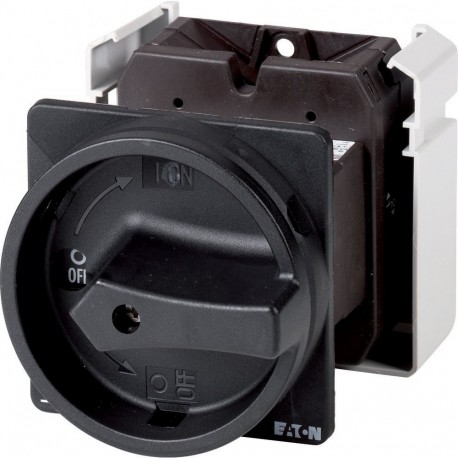

T5-4-15164/V/SVB-SW 096124 Y7-96124 EATON ELECTRIC Main switch, 6 pole + 1 N/O + 1 N/C, 100 A, STOP function..

T5-4-15164/V/SVB-SW

096124

Y7-96124

EATON - MOELLER

1 Pcs.

Main switch, 6 pole + 1 N/O + 1 N/C, 100 A, STOP function, 90 °, rear mounting General switch; 6-pole + 1 NO + 1 NC; 100 A; Lever Black; Lockable in position (OFF); 90 °; Mounting bottom panel Eaton Moeller® series T5 Main switch, T5, 100 A, rear mounting, 4 contact unit(s), 6 pole, 1 N/O, 1 N/C, STOP function, With black rotary handle and locking ring Main switch, Product range: Main switch, maintenance switch, Repair switch, Part group reference: T5, Stop Function: STOP function, With black rotary handle and locking ring, 6 pole, Degree of Protection: Front IP65, Design: rear mounting, Switching angle: 90 °, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 55 kW, Rated uninterrupted current: Iu = 100 A, 4 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller T5-4-15164/V/SVB-SW main switch is an advanced multi-pole switching apparatus featuring an integrated STOP function for rapid power interruption. Main switches of this caliber are routinely installed at machine entrances to ensure complete electrical disconnection during servicing or emergency events. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 100 A
  • Rated permanent current at AC-21, 400 V (EF009165): 100 A
  • Rated operation power at AC-3, 400 V (EF001364): 30 kW
  • Rated short-time withstand current lcw (EF007050): 1.7 kA
  • Rated operation power at AC-23, 400 V (EF007027): 55 kW
  • Switching power at 400 V (EF009166): 55 kW
  • Conditioned rated short-circuit current Iq (EF001444): 2 kA
  • Number of poles (EF001391): 6
  • Motor drive optional (EF007386): No

More info

▲

General specifications

Product Name
Eaton Moeller® series T5 Main switch
Catalog Number
096124
Model Code
T5-4-15164/V/SVB-SW
EAN
4015080961246
Product Length/Depth
188 mm
Product Height
88 mm
Product Width
88 mm
Product Weight
0.795 kg
Certifications
IEC/EN 60947-3
IEC/EN 60947
VDE 0660
IEC/EN 60204
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
