EATON - MOELLER T5-3-2/Z T5-3-2/Z 096500 Y7-96500 EATON ELECTRIC Reversing switches, Contacts: 5, 100 A, front plate: 2-0-1, 45 °, ma.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5-3-2/Z 096500 Y7-96500 EATON ELECTRIC Reversing switches, Contacts: 5, 100 A, front plate: 2-0-1, 45 °, ma..

T5-3-2/Z

096500

Y7-96500

EATON - MOELLER

1 Pcs.

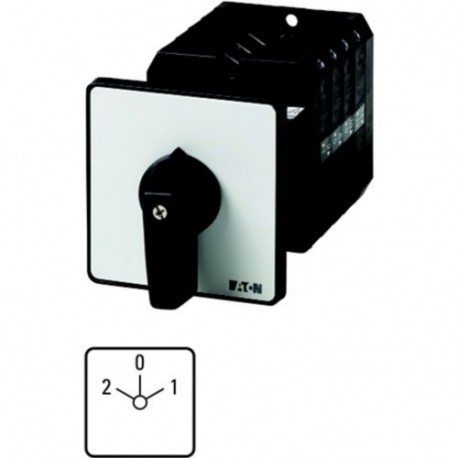

Reversing switches, Contacts: 5, 100 A, front plate: 2-0-1, 45 °, maintained, rear mounting Reversing switch; 5-pole; 100 To; rating Plate: 2-0-1; 45 °; Interlock; Mounting bottom panel Eaton Moeller® series T5 Reversing switches, T5, 100 A, rear mounting, 3 contact unit(s), Contacts: 5, 45 °, maintained, With 0 (Off) position, 2-0-1, Design number 2 Reversing switch, Product range: Control switches, Part group reference: T5, with black thumb grip and front plate, Contacts: 5, Degree of Protection: Front IP65, Design: rear mounting, Switching angle: 45 °, Switching performance: maintained, With 0 (Off) position, front plate: 2-0-1, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 55 kW, Rated uninterrupted current: Iu = 100 A, 3 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller T5-3-2/Z reversing switch is a heavy-duty cam switch engineered to manage high-current motor control and direction changes in industrial environments. Such components provide reliable manual switching for large electrical loads.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Reversing switch
  • Number of poles (EF001391): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 100 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 55 A
  • Rated operation power at AC-3, 400 V (EF001364): 30 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): Yes
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T5 Insulated enclosure
Catalog Number
096500
Model Code
T5-3-2/Z
EAN
4015080965008
Product Length/Depth
165 mm
Product Height
88 mm
Product Width
88 mm
Product Weight
0.623 kg
Certifications
IEC/EN 60204
IEC/EN 60947-3
IEC/EN 60947
VDE 0660
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
