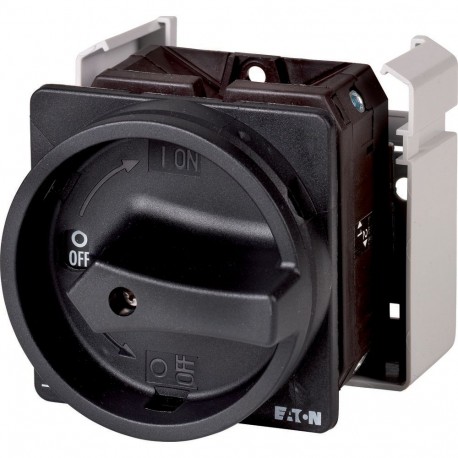

EATON - MOELLER T5-3-15284/EA/SVB-SW T5-3-15284/EA/SVB-SW 096566 Y7-96566 EATON ELECTRIC Main switch, 3 pole + N + 1 N/O + 1 N/C, 100 A, STOP fun.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5-3-15284/EA/SVB-SW 096566 Y7-96566 EATON ELECTRIC Main switch, 3 pole + N + 1 N/O + 1 N/C, 100 A, STOP fun..

T5-3-15284/EA/SVB-SW

096566

Y7-96566

EATON - MOELLER

1 Pcs.

Main switch, 3 pole + N + 1 N/O + 1 N/C, 100 A, STOP function, 90 °, flush mounting General switch; 3-pole + N + 1 NO + 1 NC; 100 A; Lever Black; Lockable in position (OFF); 90 °; Mounting Eaton Moeller® series T5 Main switch, T5, 100 A, flush mounting, 3 contact unit(s), 3 pole + N, 1 N/O, 1 N/C, STOP function, With black rotary handle and locking ring Main switch, Product range: Main switch, maintenance switch, Repair switch, Part group reference: T5, Stop Function: STOP function, With black rotary handle and locking ring, 3 pole + N, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 90 °, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 55 kW, Rated uninterrupted current: Iu = 100 A, 3 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Providing heavy-duty power control, the T5-3-15284/EA/SVB-SW Eaton Moeller main switch is designed to handle demanding load-breaking tasks in automated facilities. Multi-pole main switches are standard elements in industrial power distribution panels for safely routing and isolating high-capacity electrical supplies. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): No
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 600 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 100 A
  • Rated permanent current at AC-21, 400 V (EF009165): 100 A
  • Rated operation power at AC-3, 400 V (EF001364): 30 kW
  • Rated short-time withstand current lcw (EF007050): 1.7 kA
  • Rated operation power at AC-23, 400 V (EF007027): 55 kW
  • Switching power at 400 V (EF009166): 55 kW
  • Conditioned rated short-circuit current Iq (EF001444): 2 kA
  • Number of poles (EF001391): 4

More info

▲

General specifications

Product Name
Eaton Moeller® series T5 Main switch
Catalog Number
096566
Model Code
T5-3-15284/EA/SVB-SW
EAN
4015080965664
Product Length/Depth
156 mm
Product Height
88 mm
Product Width
88 mm
Product Weight
0.74 kg
Certifications
IEC/EN 60947-3
IEC/EN 60204
VDE 0660
IEC/EN 60947
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
