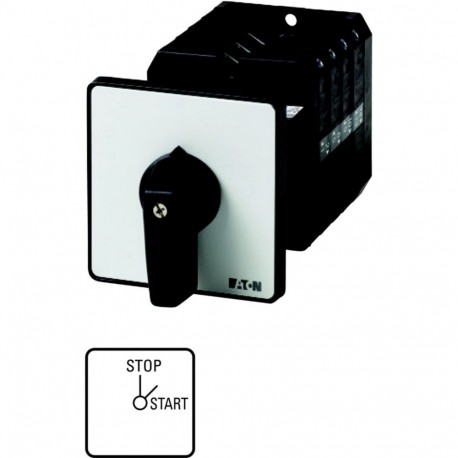

EATON - MOELLER T5-2-15414/Z T5-2-15414/Z 096942 Y7-96942 EATON ELECTRIC ON-OFF switches, Contacts: 4, 100 A, front plate: STOP-START, 45.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T5-2-15414/Z 096942 Y7-96942 EATON ELECTRIC ON-OFF switches, Contacts: 4, 100 A, front plate: STOP-START, 45..

T5-2-15414/Z

096942

Y7-96942

EATON - MOELLER

1 Pcs.

ON-OFF switches, Contacts: 4, 100 A, front plate: STOP-START, 45 °, maintained, rear mounting ON-OFF 3-pole disconnector switch 100 A Indicator plate: Eaton Moeller® series T5 ON-OFF switches, T5, 100 A, rear mounting, 2 contact unit(s), Contacts: 4, 45 °, maintained, Without 0 (Off) position, STOP-START, Design number 15414 On-Off switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T5, with black thumb grip and front plate, Contacts: 4, Degree of Protection: Front IP65, Design: rear mounting, Switching angle: 45 °, Switching performance: maintained, Without 0 (Off) position, 2 contact unit(s), Rated uninterrupted current: Iu= 100 A, front plate: STOP-START

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller T5-2-15414/Z Eaton Electric ON-OFF switch handles high-amperage switching requirements for heavy-duty electrical installations and motor circuits. These robust switches ensure safe current interruption under demanding load conditions.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): On/Off switch
  • Number of poles (EF001391): 4
  • Max. rated operation voltage Ue AC (EF007355): 600 V
  • Rated permanent current Iu (EF001389): 100 A
  • Number of switch positions (EF000231): 2
  • With zero (off) position (EF001416): No
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): Yes
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 88x88 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T5 On-off switch
Catalog Number
096942
Model Code
T5-2-15414/Z
EAN
4015080969426
Product Length/Depth
149 mm
Product Height
88 mm
Product Width
88 mm
Product Weight
0.488 kg
Certifications
IEC/EN 60204
VDE 0660
IEC/EN 60947-3
IEC/EN 60947
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
