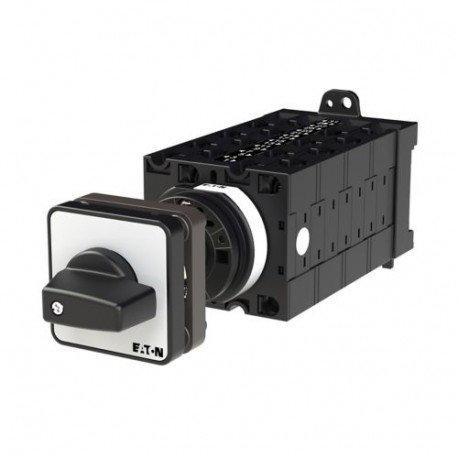

EATON - MOELLER T3-8-8272/Z T3-8-8272/Z 035762 Y7-35762 EATON ELECTRIC Step switches, Contacts: 15, 32 A, front plate: 1-4, 45 °, mainta.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-8-8272/Z 035762 Y7-35762 EATON ELECTRIC Step switches, Contacts: 15, 32 A, front plate: 1-4, 45 °, mainta..

T3-8-8272/Z

035762

Y7-35762

EATON - MOELLER

1 Pcs.

Step switches, Contacts: 15, 32 A, front plate: 1-4, 45 °, maintained, rear mounting Step switch 15 poles 32 A Indicator plate: 1-4 45° Eaton Moeller® series T3 Step switches, T3, 32 A, rear mounting, 8 contact unit(s), Contacts: 15, 45 °, maintained, Without 0 (Off) position, 1-4, Design number 8272

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller T3-8-8272/Z step switch functions as a robust manual selector for multi-stage electrical systems and automated machinery lines.

Industrial engineers rely on step switches to govern complex switching tasks, enabling precise sequential adjustments during operations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: T3-8-8272/Z
  • Catalogue code: 035762

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Step switch
Catalog Number
035762
Model Code
T3-8-8272/Z
EAN
4015080357629
Product Length/Depth
202 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.446 kg
Certifications
CSA Class No.: 3211-05
CSA File No.: 012528
IEC/EN 60947
UL
CSA-C22.2 No. 60947-4-1-14
UL 60947-4-1
UL File No.: E36332
IEC/EN 60204
CSA-C22.2 No. 94
IEC/EN 60947-3
UL Category Control No.: NLRV
VDE 0660
CSA
CE
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
