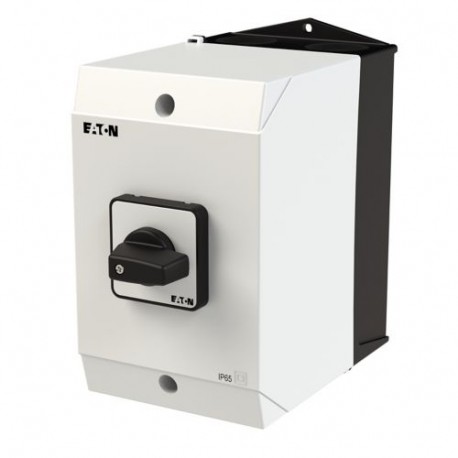

EATON - MOELLER T3-5-15892/I2 T3-5-15892/I2 221642 Y7-221642 EATON ELECTRIC Star-delta switches, Contacts: 10, 32 A, front plate: B 0-Y-D,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-5-15892/I2 221642 Y7-221642 EATON ELECTRIC Star-delta switches, Contacts: 10, 32 A, front plate: B 0-Y-D,..

T3-5-15892/I2

221642

Y7-221642

EATON - MOELLER

1 Pcs.

Star-delta switches, Contacts: 10, 32 A, front plate: B>0-Y-D, 60 °, maintained, surface mounting T3-5-15892/I2 Eaton Moeller® series T3 Star-delta switches, T3, 32 A, surface mounting, 5 contact unit(s), Contacts: 10, 60 °, maintained, With 0 (Off) position, With spring-return to 0, B>0-Y-D, Design number 15892 Star-delta switch, Product range: Control switches, Part group reference: T3, with black thumb grip and front plate, Contacts: 10, Degree of Protection: IP65, Design: surface mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, With spring-return to 0, front plate: B>0-Y-D, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 5 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Eaton Moeller T3-5-15892/I2 star-delta switch is a specialized manual control device designed to manage the startup sequence of three-phase induction motors by limiting initial inrush currents. These units are commonly deployed in industrial machinery to protect electrical distribution networks during heavy motor acceleration.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Star-delta switch
  • Number of poles (EF001391): 3
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): Yes
  • Rated permanent current Iu (EF001389): 32 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 23.7 A
  • Rated operation power at AC-3, 400 V (EF001364): 18.5 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): Yes
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Star-delta switch
Catalog Number
221642
Model Code
T3-5-15892/I2
EAN
4015082216429
Product Length/Depth
181 mm
Product Height
180 mm
Product Width
100 mm
Product Weight
0.658 kg
Compliances
CE Marked
Certifications
EN 60947-3
UL 508
CSA Std. C22.2 No. 14-05
IEC 60947
VDE
UL
CSA
CSA File No.: 012528
UL Category Control No.: NLRV
UL File No.: E36332
CSA-C22.2 No. 60947-4-1-14
CSA Class No.: 3211-07
VDE 0660
CSA-C22.2 No. 94
IEC/EN 60204
CE
IEC/EN 60947
IEC/EN 60947-3
UL 60947-4-1
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
