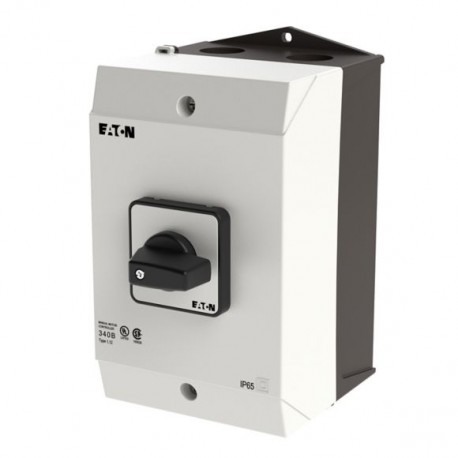

EATON - MOELLER T3-4-8343/I2-NA T3-4-8343/I2-NA 264010 Y7-264010 EATON ELECTRIC On-Off switch, T3, 32 A, surface mounting, 4 contact unit(s).. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-4-8343/I2-NA 264010 Y7-264010 EATON ELECTRIC On-Off switch, T3, 32 A, surface mounting, 4 contact unit(s)..

T3-4-8343/I2-NA

264010

Y7-264010

EATON - MOELLER

1 Pcs.

On-Off switch, T3, 32 A, surface mounting, 4 contact unit(s), 7-pole, with black thumb grip and front plate, UL/CSA T3-4-8343/I2-NA Eaton Moeller® series T3 On-Off switch, T3, 32 A, surface mounting, 4 contact unit(s), 7-pole, with black thumb grip and front plate, UL/CSA On-Off switch, Product range: On-Off switch, Part group reference: T3, with black thumb grip and front plate, Notes: UL/CSA, 7-pole, Degree of Protection: IP65, Design: surface mounting, Switching angle: 90 °, Switching performance: maintained, front plate: 0-1, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 4 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 On-off switch
Catalog Number
264010
Model Code
T3-4-8343/I2-NA
EAN
4015082640101
Product Length/Depth
206 mm
Product Height
135 mm
Product Width
187 mm
Product Weight
0.594 kg
Certifications
CSA Class No.: 3211-07
IEC/EN 60947-3
VDE 0660
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947
UL
UL Category Control No.: NLRV
CSA
CSA-C22.2 No. 94
IEC/EN 60204
CE
CSA File No.: 012528
UL File No.: E36332
UL 60947-4-1

ETIM for 264010 Low-voltage industrial controls and switchgear (EC000216)
Feature Name Feature Value
Version as main switch (EF006981) No
Version as maintenance-/service switch (EF006986) No
Version as safety switch (EF006985) No
Version as emergency stop installation (EF006959) No
Version as reversing switch (EF009408) No
Number of switches (EF005586) 1
Rated operating voltage (EF001435) 690 V
Rated permanent current Iu (EF001389) 32 A
Rated permanent current at AC-23, 400 V (EF011777) 32 A
Rated permanent current at AC-21, 400 V (EF009165) 32 A
Rated operation power at AC-3, 400 V (EF001364) 11 kW
Rated short-time withstand current lcw (EF007050) 0.65 kA
Rated operation power at AC-23, 400 V (EF007027) 15 kW
Switching power at 400 V (EF009166) 15 kW
Conditioned rated short-circuit current Iq (EF001444) 1 kA
Number of poles (EF001391) 7
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Motor drive optional (EF007386) No
Motor drive integrated (EF006697) No
Voltage release optional (EF007491) No
Device construction (EF008240) Complete device in housing
Suitable for front mounting 4-hole (EF007247) No
Suitable for front mounting centre (EF007248) No
Suitable for distribution board installation (EF007262) No
Suitable for intermediate mounting (EF007264) No
Colour control element (EF007167) Black
Type of control element (EF006976) Short thumb-grip
Interlockable (EF006281) No
Type of electrical connection of main circuit (EF006819) Screw connection
With pre-assembled cabling (EF016444) No
Degree of protection (IP), front side (EF003118) IP65
Degree of protection (NEMA) (EF011959) 12
Width (EF000008) 187 mm
Height (EF000040) 135 mm
Depth (EF000049) 206 mm
