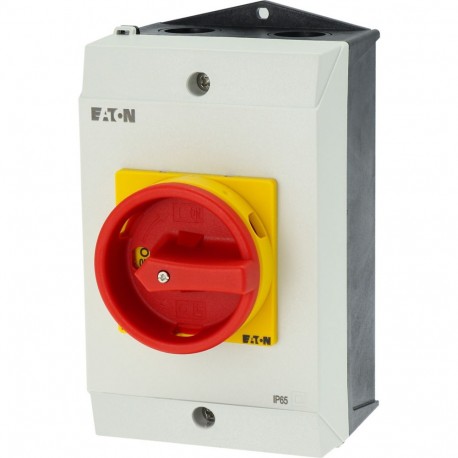

T3-4-15700/I2/SVB 222570 Y7-222570 EATON ELECTRIC Main switch, 6 pole + 2 N/O, 32 A, Emergency-Stop function..
T3-4-15700/I2/SVB
222570
Y7-222570
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Eaton Moeller T3-4-15700/I2/SVB 222570 Y7-222570 EATON ELECTRIC Main switch, 6 pole + 2 N/O, 32 A, Emergency-Stop function.. is an enclosed control and safety switch designed to interrupt main power supplies securely in industrial manufacturing environments. Industrial facilities regularly implement switches of this configuration to comply with machine safety standards, serving as both a primary operational disconnect and an emergency cutoff mechanism.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): Yes
- Version as maintenance-/service switch (EF006986): Yes
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): Yes
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 32 A
- Rated permanent current at AC-23, 400 V (EF011777): 32 A
- Rated permanent current at AC-21, 400 V (EF009165): 32 A
- Rated operation power at AC-3, 400 V (EF001364): 11 kW
- Rated short-time withstand current lcw (EF007050): 0.65 kA
- Rated operation power at AC-23, 400 V (EF007027): 15 kW
- Switching power at 400 V (EF009166): 15 kW
- Conditioned rated short-circuit current Iq (EF001444): 1 kA
- Number of poles (EF001391): 6
More info
▲General specifications
IEC 60947
EN 60947-3
CSA Std. C22.2 No. 14-05
VDE
CSA-C22.2 No. 94
UL File No.: E36332
IEC/EN 60204
UL
UL 60947-4-1
VDE 0660
CE
CSA
CSA Class No.: 3211-07
IEC/EN 60947
UL Category Control No.: NLRV
CSA File No.: 012528
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947-3
