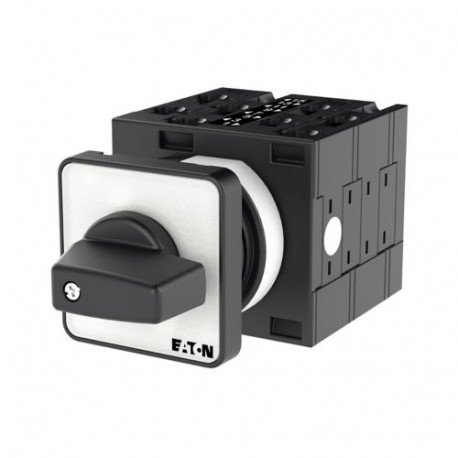

EATON - MOELLER T3-4-153/E T3-4-153/E 020171 Y7-20171 EATON ELECTRIC Step switches, Contacts: 8, 32 A, front plate: 1-8, 45 °, maintain.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-4-153/E 020171 Y7-20171 EATON ELECTRIC Step switches, Contacts: 8, 32 A, front plate: 1-8, 45 °, maintain..

T3-4-153/E

020171

Y7-20171

EATON - MOELLER

1 Pcs.

Step switches, Contacts: 8, 32 A, front plate: 1-8, 45 °, maintained, flush mounting Switch steps; 8-pole; 32; rating Plate: 1-8; 45 °; Interlock; recessed Mounting Eaton Moeller® series T3 Step switches, T3, 32 A, flush mounting, 4 contact unit(s), Contacts: 8, 45 °, maintained, Without 0 (Off) position, 1-8, Design number 153 Step switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T3, with black thumb grip and front plate, Contacts: 8, Degree of Protection: Front IP65, Design: flush mounting, Switching angle: 45 °, Switching performance: maintained, Without 0 (Off) position, 4 contact unit(s), Rated uninterrupted current: Iu= 32 A, front plate: 1-8

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller T3-4-153/E step switch provides manual multi-position circuit selection for industrial control equipment, allowing operators to navigate through distinct operational modes or process phases. These switches are built for durability and dependable performance in heavy-duty machinery.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): Level switch
  • Number of poles (EF001391): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Number of switch positions (EF000231): 8
  • With zero (off) position (EF001416): No
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 0
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Step switch
Catalog Number
020171
Model Code
T3-4-153/E
EAN
4015080201717
Product Length/Depth
114 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.252 kg
Certifications
CSA-C22.2 No. 60947-4-1-14
UL Category Control No.: NLRV
VDE 0660
CE
CSA
UL
CSA Class No.: 3211-05
IEC/EN 60947-3
CSA File No.: 012528
IEC/EN 60204
CSA-C22.2 No. 94
UL 60947-4-1
IEC/EN 60947
UL File No.: E36332
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
