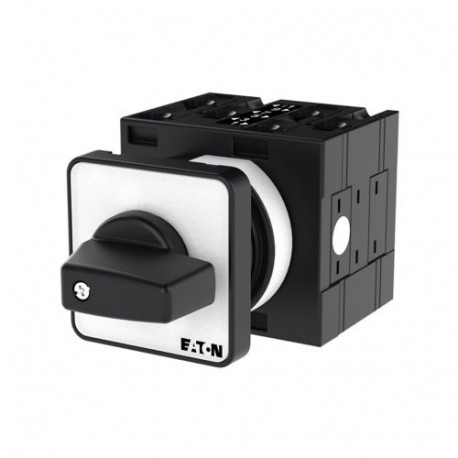

EATON - MOELLER T3-3-6/E T3-3-6/E 019353 Y7-19353 EATON ELECTRIC Multi-speed switches, Contacts: 6, 32 A, 2 speeds, 2 separate windin.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-3-6/E 019353 Y7-19353 EATON ELECTRIC Multi-speed switches, Contacts: 6, 32 A, 2 speeds, 2 separate windin..

T3-3-6/E

019353

Y7-19353

EATON - MOELLER

1 Pcs.

Multi-speed switches, Contacts: 6, 32 A, 2 speeds, 2 separate windings, front plate: 0-2, 60 °, maintained, flush mounting Switch Multi-speed; 6-pole; 32; 2 speeds; 2 separate windings; rating Plate: 0-2; 60 °; Interlock; recessed Mounting Eaton Moeller® series T3 Multi-speed switches, T3, 32 A, flush mounting, 3 contact unit(s), Contacts: 6, 60 °, maintained, With 0 (Off) position, 0-2, Design number 6 Multi-speed switch, Product range: Control switches, Part group reference: T3, with black thumb grip and front plate, Contacts: 6, Degree of Protection: Front IP65, Design: flush mounting, switching function: 2 speeds, 2 separate windings, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, front plate: 0-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 3 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Multi-speed switch
Catalog Number
019353
Model Code
T3-3-6/E
EAN
4015080193531
Product Length/Depth
102 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.21 kg
Certifications
CSA File No.: 012528
UL 60947-4-1
CSA Class No.: 3211-05
VDE 0660
CSA
UL
UL File No.: E36332
IEC/EN 60204
CE
CSA-C22.2 No. 60947-4-1-14
CSA-C22.2 No. 94
IEC/EN 60947
IEC/EN 60947-3
UL Category Control No.: NLRV
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

ETIM for 019353 Low-voltage industrial controls and switchgear (EC001105)
Feature Name Feature Value
Model (EF000010) Pole switch
Number of poles (EF001391) 3
With zero (off) position (EF001416) Yes
With retraction in 0-position (EF002428) No
Rated permanent current Iu (EF001389) 32 A
Rated operation current Ie at AC-3, 400 V (EF001392) 23.7 A
Rated operation power at AC-3, 400 V (EF001364) 12 kW
Degree of protection (IP), front side (EF003118) IP65
Degree of protection (NEMA), front side (EF011961) 12
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Suitable for floor mounting (EF007243) No
Suitable for front mounting (EF007246) Yes
Suitable for distribution board installation (EF007262) No
Suitable for intermediate mounting (EF007264) No
Complete device in housing (EF007317) No
Housing material (EF001596) Plastic
Type of control element (EF006976) Short thumb-grip
Type of electrical connection of main circuit (EF006819) Screw connection

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
