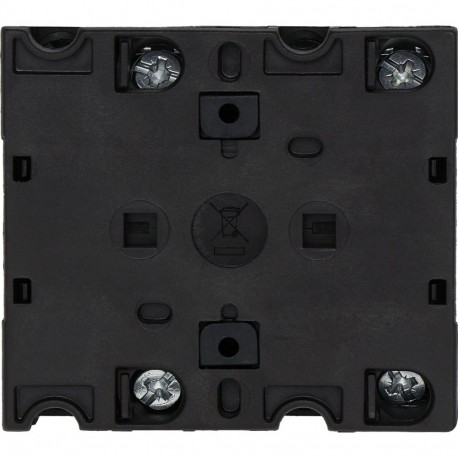

EATON - MOELLER T3-3-21/EZ T3-3-21/EZ 018959 Y7-18959 EATON ELECTRIC Reversing switches, Contacts: 6, 32 A, front plate: 1-2, 45 °, mai.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-3-21/EZ 018959 Y7-18959 EATON ELECTRIC Reversing switches, Contacts: 6, 32 A, front plate: 1-2, 45 °, mai..

T3-3-21/EZ

018959

Y7-18959

EATON - MOELLER

1 Pcs.

Reversing switches, Contacts: 6, 32 A, front plate: 1-2, 45 °, maintained, centre mounting Reversing switch; 6-pole; 32; rating Plate: 1-2; 45 °; Interlock; recessed Mounting with central fixing Eaton Moeller® series T3 Reversing switches, T3, 32 A, center mounting, 3 contact unit(s), Contacts: 6, 45 °, maintained, Without 0 (Off) position, 1-2, Design number 21 Reversing switch, Product range: Control switches, Part group reference: T3, with black thumb grip and front plate, Contacts: 6, Degree of Protection: Front IP65, Design: center mounting, Switching angle: 45 °, Switching performance: maintained, Without 0 (Off) position, front plate: 1-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 3 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Eaton Moeller T3-3-21/EZ reversing switch directs the phase sequence in motor control circuits to alter operational direction safely and efficiently. These robust manual switches are standard components in industrial machinery requiring frequent directional changes.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Reversing switch
  • Number of poles (EF001391): 3
  • With zero (off) position (EF001416): No
  • With retraction in 0-position (EF002428): No
  • Rated permanent current Iu (EF001389): 32 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 23.7 A
  • Rated operation power at AC-3, 400 V (EF001364): 12 kW
  • Degree of protection (IP), front side (EF003118): IP65
  • Degree of protection (NEMA), front side (EF011961): 12
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for distribution board installation (EF007262): No
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Housing material (EF001596): Plastic
  • Type of control element (EF006976): Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Reversing switch
Catalog Number
018959
Model Code
T3-3-21/EZ
EAN
4015080189596
Product Length/Depth
124 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.233 kg
Certifications
IEC/EN 60204
UL
CSA-C22.2 No. 94
CE
CSA
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947
UL Category Control No.: NLRV
UL File No.: E36332
VDE 0660
CSA File No.: 012528
UL 60947-4-1
CSA Class No.: 3211-05
IEC/EN 60947-3
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
