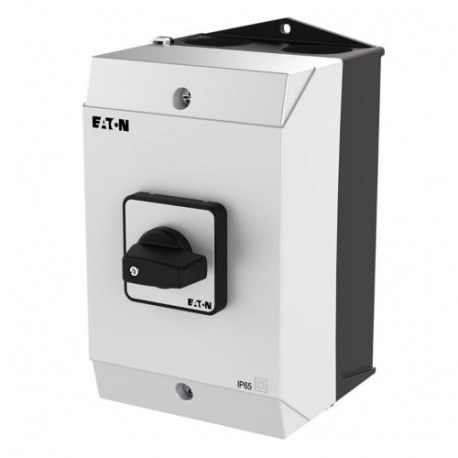

EATON - MOELLER T3-3-20/I2 T3-3-20/I2 222871 Y7-222871 EATON ELECTRIC Reversing switches, Contacts: 6, 32 A, front plate: 2-0-1, 45 °, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-3-20/I2 222871 Y7-222871 EATON ELECTRIC Reversing switches, Contacts: 6, 32 A, front plate: 2-0-1, 45 °, ..

T3-3-20/I2

222871

Y7-222871

EATON - MOELLER

1 Pcs.

Reversing switches, Contacts: 6, 32 A, front plate: 2-0-1, 45 °, maintained, surface mounting, SOND 29 T3-3-20/I2 Eaton Moeller® series T3 Reversing switches, T3, 32 A, surface mounting, 3 contact unit(s), Contacts: 6, 45 °, maintained, With 0 (Off) position, 2-0-1, SOND 29, Design number 20 Reversing switch, Product range: Control switches, Part group reference: T3, with black thumb grip and front plate, Notes: SOND 29, Contacts: 6, Degree of Protection: IP65, Design: surface mounting, Switching angle: 45 °, Switching performance: maintained, With 0 (Off) position, front plate: 2-0-1, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 3 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Built for reversing applications, the Eaton Moeller T3-3-20/I2 reversing switch allows operators to manually change the rotational direction of motors by switching phase connections. Such housed devices provide dependable local control and isolation within industrial electrical networks.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model: Reversing switch
  • Number of poles: 3
  • With zero (off) position: Yes
  • With retraction in 0-position: No
  • Rated permanent current Iu: 32 A
  • Rated operation current Ie at AC-3, 400 V: 23.7 A
  • Rated operation power at AC-3, 400 V: 12 kW
  • Degree of protection (IP), front side: IP65
  • Degree of protection (NEMA), front side: 12
  • Suitable for floor mounting: Yes
  • Suitable for front mounting: No
  • Suitable for distribution board installation: No
  • Suitable for intermediate mounting: No
  • Complete device in housing: Yes
  • Housing material: Plastic
  • Type of control element: Short thumb-grip

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Reversing switch
Catalog Number
222871
Model Code
T3-3-20/I2
EAN
4015082228712
Product Length/Depth
181 mm
Product Height
127 mm
Product Width
100 mm
Product Weight
0.563 kg
Certifications
UL
IEC/EN 60204
IEC/EN 60947-3
CSA File No.: 012528
CSA Class No.: 3211-07
CSA-C22.2 No. 94
IEC/EN 60947
UL File No.: E36332
UL 60947-4-1
VDE 0660
UL Category Control No.: NLRV
CSA
CSA-C22.2 No. 60947-4-1-14
CE
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
