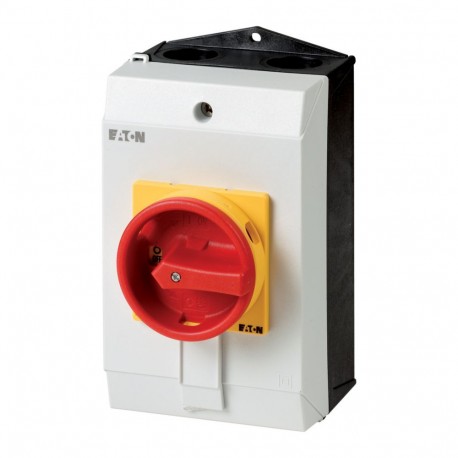

EATON - MOELLER T3-3-15259/I2/SVB T3-3-15259/I2/SVB 222867 Y7-222867 EATON ELECTRIC Main switch, 3 pole + 2 N/O, 32 A, Emergency-Stop function.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-3-15259/I2/SVB 222867 Y7-222867 EATON ELECTRIC Main switch, 3 pole + 2 N/O, 32 A, Emergency-Stop function..

T3-3-15259/I2/SVB

222867

Y7-222867

EATON - MOELLER

1 Pcs.

Main switch, 3 pole + 2 N/O, 32 A, Emergency-Stop function, 90 °, surface mounting T3-3-15259/I2/SVB Eaton Moeller® series T3 Main switch, T3, 32 A, surface mounting, 3 contact unit(s), 3 pole, 2 N/O, Emergency switching off function, With red rotary handle and yellow locking ring Main switch, Product range: Main switch, maintenance switch, Repair switch, Part group reference: T3, Stop Function: Emergency switching off function, With red rotary handle and yellow locking ring, 3 pole, Degree of Protection: IP65, Design: surface mounting, Switching angle: 90 °, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 3 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Equipped with integrated Emergency-Stop capabilities, the Eaton Moeller T3-3-15259/I2/SVB main switch ensures reliable power interruption and personnel safety during emergency conditions. Main switches are mandatory components in industrial machinery setups to allow immediate physical disconnection from incoming power lines. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): Yes
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 32 A
  • Rated permanent current at AC-23, 400 V (EF011777): 32 A
  • Rated permanent current at AC-21, 400 V (EF009165): 32 A
  • Rated operation power at AC-3, 400 V (EF001364): 11 kW
  • Rated short-time withstand current lcw (EF007050): 0.65 kA
  • Rated operation power at AC-23, 400 V (EF007027): 15 kW
  • Switching power at 400 V (EF009166): 15 kW
  • Conditioned rated short-circuit current Iq (EF001444): 1 kA
  • Number of poles (EF001391): 3

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Main switch
Catalog Number
222867
Model Code
T3-3-15259/I2/SVB
EAN
4015082228675
Product Length/Depth
206 mm
Product Height
135 mm
Product Width
187 mm
Product Weight
0.585 kg
Certifications
IEC/EN 60947
CE
UL
CSA-C22.2 No. 60947-4-1-14
CSA-C22.2 No. 94
IEC/EN 60947-3
UL Category Control No.: NLRV
CSA Class No.: 3211-07
CSA File No.: 012528
UL 60947-4-1
VDE 0660
IEC/EN 60204
CSA
UL File No.: E36332
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
