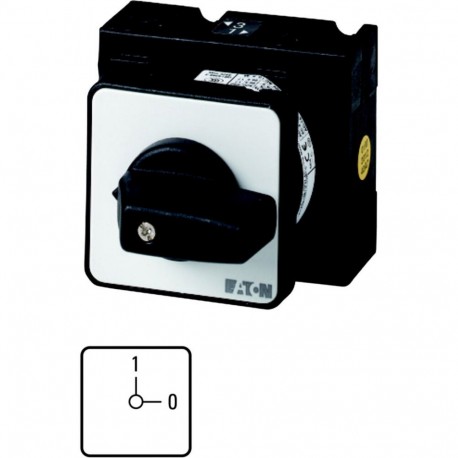

T3-2-8224/EZ 018438 Y7-18438 EATON ELECTRIC ON-OFF switches, Contacts: 3, 32 A, front plate: 1-0, 90 °, main..
T3-2-8224/EZ
018438
Y7-18438
EATON - MOELLER
1 Pcs.
Automation > Control switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller ON-OFF switch (T3-2-8224/EZ) functions as a primary disconnect or main control device, securely interrupting power to industrial machinery during servicing or routine shutdowns. Panel builders rely on these robust rotary disconnects to ensure compliance with electrical safety standards.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Type of switch: On/Off switch
- Number of poles: 3
- Max. rated operation voltage Ue AC: 690 V
- Rated permanent current Iu: 32 A
- Number of switch positions: 2
- With zero (off) position: Yes
- With retraction in 0-position: No
- Device construction: Built-in device
- Width in number of modular spacings: 0
- Suitable for floor mounting: No
- Suitable for front mounting: Yes
- Suitable for distribution board installation: No
- Suitable for intermediate mounting: No
- Complete device in housing: No
- Type of control element: Toggle
- Front shield size: 48x48 mm
More info
▲General specifications
CSA Class No.: 3211-05
CSA-C22.2 No. 94
CSA File No.: 012528
IEC/EN 60947
UL File No.: E36332
VDE 0660
IEC/EN 60947-3
CE
CSA-C22.2 No. 60947-4-1-14
UL 60947-4-1
IEC/EN 60204
UL
CSA
