> EATON - MOELLER > Disconnectors and Cam Switches > 018279

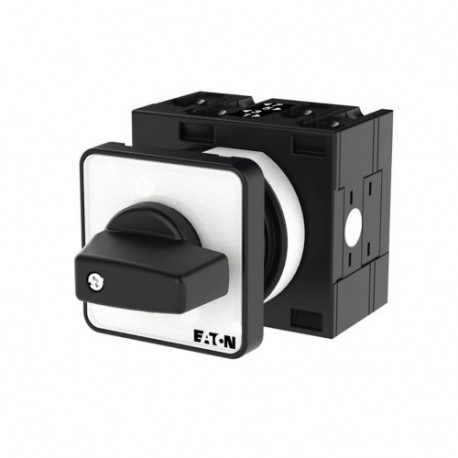

EATON - MOELLER T3-2-39/E T3-2-39/E 018279 Y7-18279 EATON ELECTRIC Multi-speed switches, Contacts: 4, 32 A, 2 speeds, 2 separate windi.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T3-2-39/E 018279 Y7-18279 EATON ELECTRIC Multi-speed switches, Contacts: 4, 32 A, 2 speeds, 2 separate windi..

T3-2-39/E

018279

Y7-18279

EATON - MOELLER

1 Pcs.

Multi-speed switches, Contacts: 4, 32 A, 2 speeds, 2 separate windings, front plate: 1-2, 90 °, maintained, flush mounting Switch Multi-speed; 4-pole; 32; 2 speeds; 2 separate windings; rating Plate: 1-2; 90 °; Latch; flush Mount Eaton Moeller® series T3 Multi-speed switches, T3, 32 A, flush mounting, 2 contact unit(s), Contacts: 4, 90 °, maintained, Without 0 (Off) position, 1-2, Design number 39 Multi-speed switch, Product range: Control switches, Part group reference: T3, with black thumb grip and front plate, Contacts: 4, Degree of Protection: Front IP65, Design: flush mounting, switching function: 2 speeds, 2 separate windings, Switching angle: 90 °, Switching performance: maintained, Without 0 (Off) position, front plate: 1-2, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 15 kW, Rated uninterrupted current: Iu = 32 A, 2 contact unit(s), Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Automation > Off-load switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series T3 Multi-speed switch
Catalog Number
018279
Model Code
T3-2-39/E
EAN
4015080182795
Product Length/Depth
91 mm
Product Height
54 mm
Product Width
61 mm
Product Weight
0.172 kg
Certifications
CE
CSA Class No.: 3211-05
IEC/EN 60204
CSA File No.: 012528
IEC/EN 60947
UL File No.: E36332
VDE 0660
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947-3
UL Category Control No.: NLRV
CSA
UL
UL 60947-4-1
CSA-C22.2 No. 94
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

ETIM for 018279 Low-voltage industrial controls and switchgear (EC001105)
Feature Name Feature Value
Model (EF000010) Pole switch
Number of poles (EF001391) 2
With zero (off) position (EF001416) No
With retraction in 0-position (EF002428) No
Rated permanent current Iu (EF001389) 32 A
Rated operation current Ie at AC-3, 400 V (EF001392) 23.7 A
Rated operation power at AC-3, 400 V (EF001364) 12 kW
Degree of protection (IP), front side (EF003118) IP65
Degree of protection (NEMA), front side (EF011961) 12
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Suitable for floor mounting (EF007243) No
Suitable for front mounting (EF007246) Yes
Suitable for distribution board installation (EF007262) No
Suitable for intermediate mounting (EF007264) No
Complete device in housing (EF007317) No
Housing material (EF001596) Plastic
Type of control element (EF006976) Short thumb-grip
Type of electrical connection of main circuit (EF006819) Screw connection

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
